Reference1701.2420001

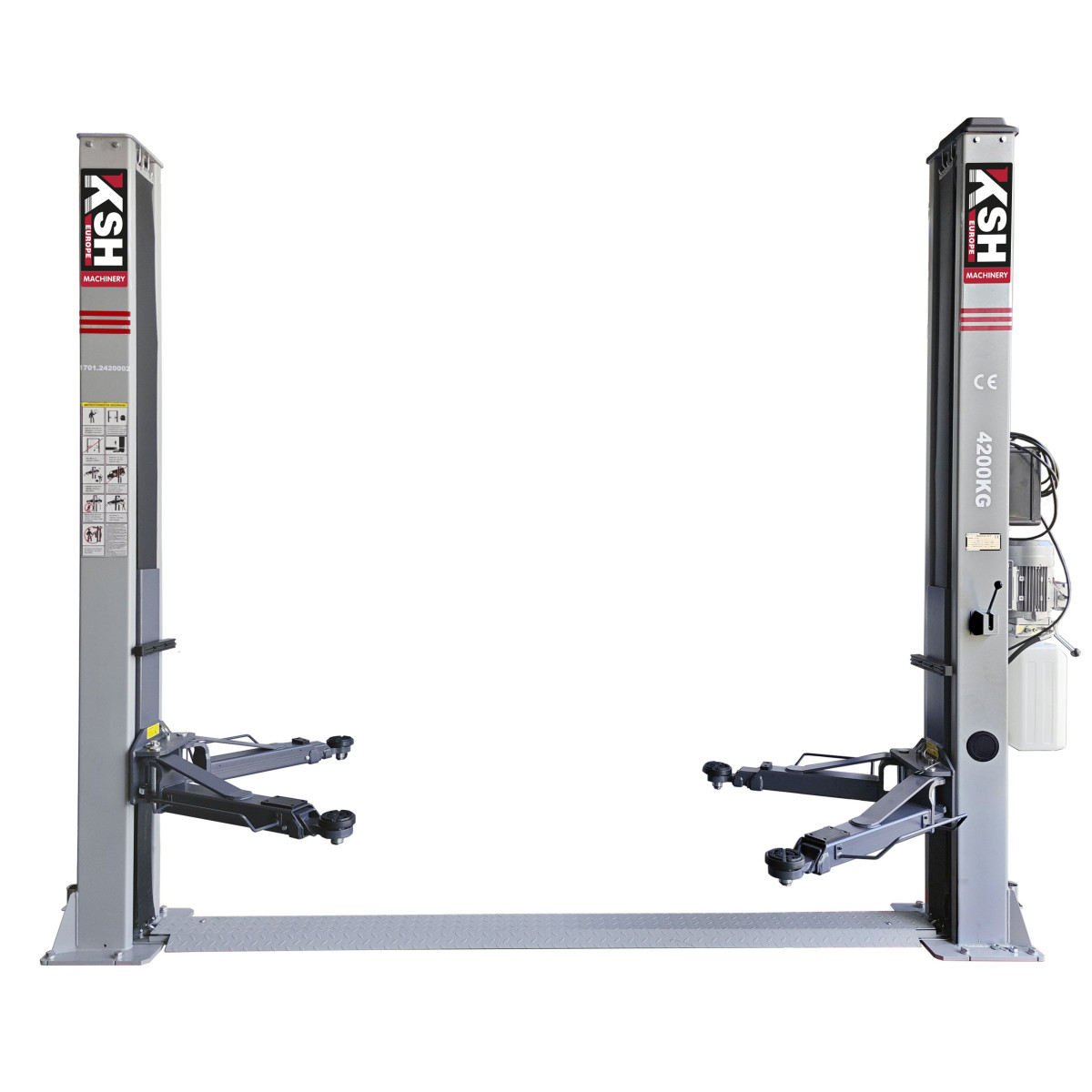

2 Post Lift Semi-automatic 4,2T 230V

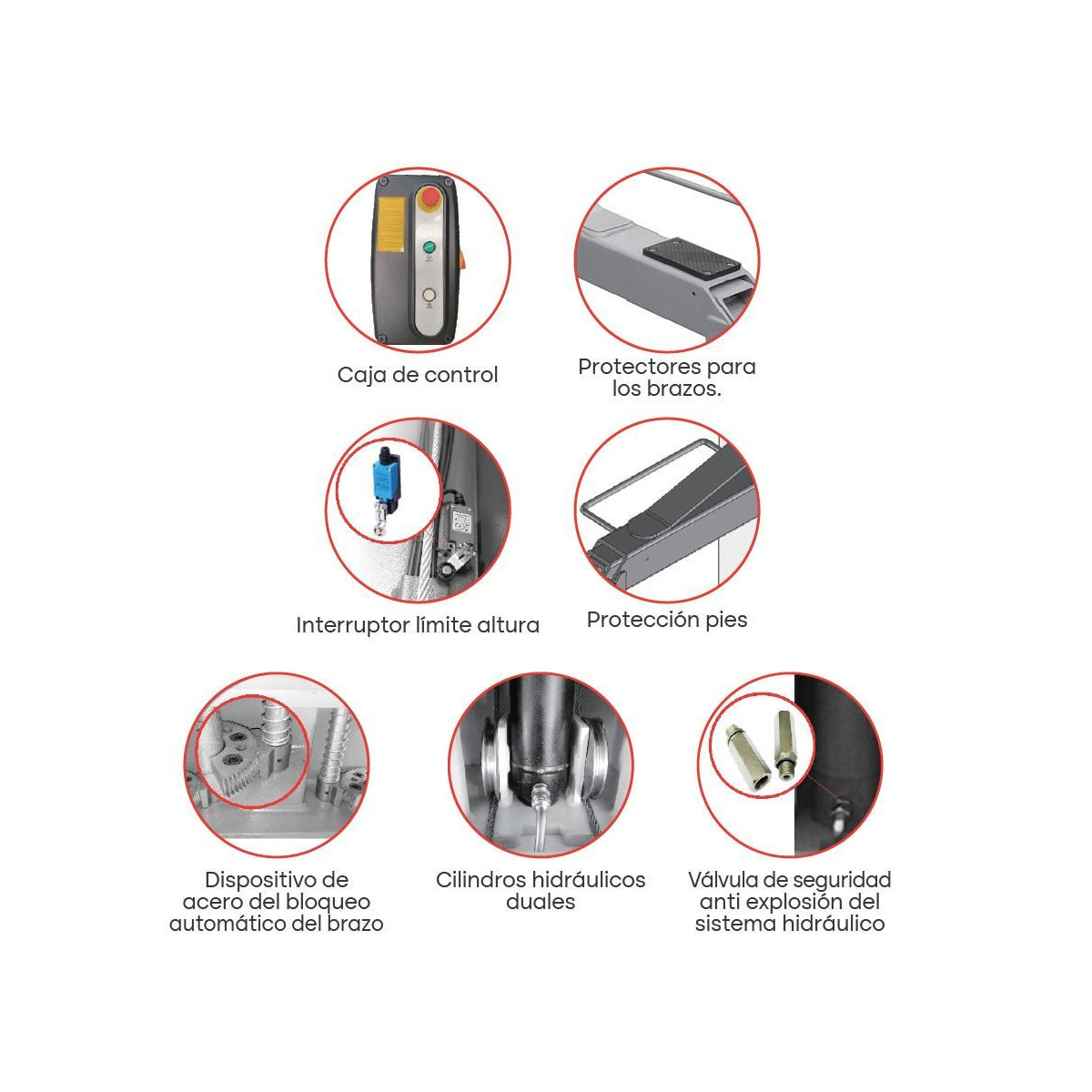

The 4.2 tonne semi-automatic 2-post lift is an indispensable tool for workshops requiring reliability, safety and efficiency in vehicle lifting. Its robust structure, combined with an adjustable arm system (2+3), offers great versatility for different types of vehicles. It incorporates safety features such as anti-explosion valve, arm and door guards, as well as automatic arm locking, ensuring safe operation at all times. The design includes an aluminium motor, synchronised cables and chain guard, facilitating maintenance and increasing durability. Accredited with CE Certification, it meets the highest safety standards in the professional environment.
Unit Sale:
1 pc
Qty Ind Box:
1

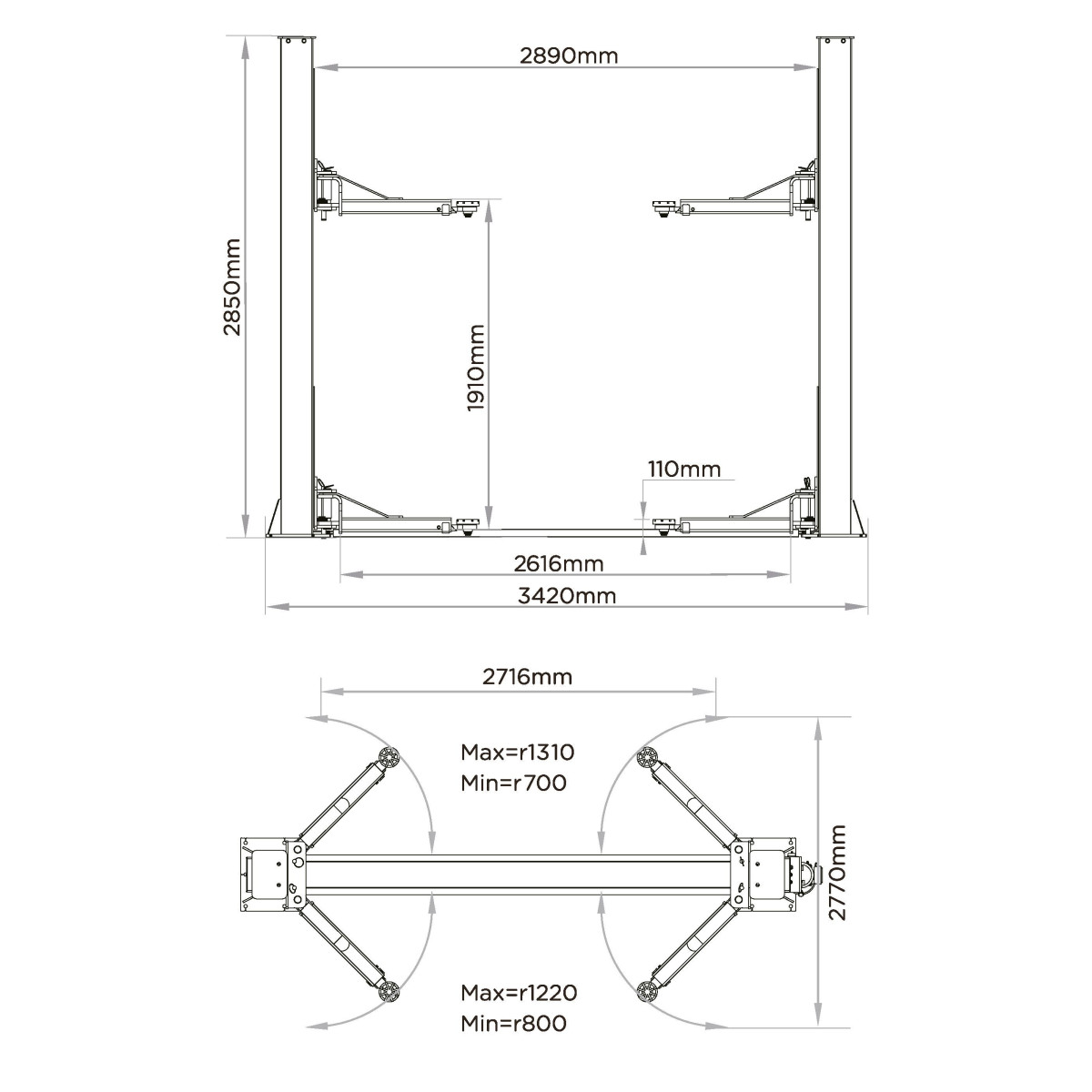

- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 230V 50Hz 1PH
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s.
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 573.50 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm.
EAN-13, GTIN, UCC8421779827292
- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 230V 50Hz 1PH
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s.
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 573.50 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm.
