Reference1701.2420002

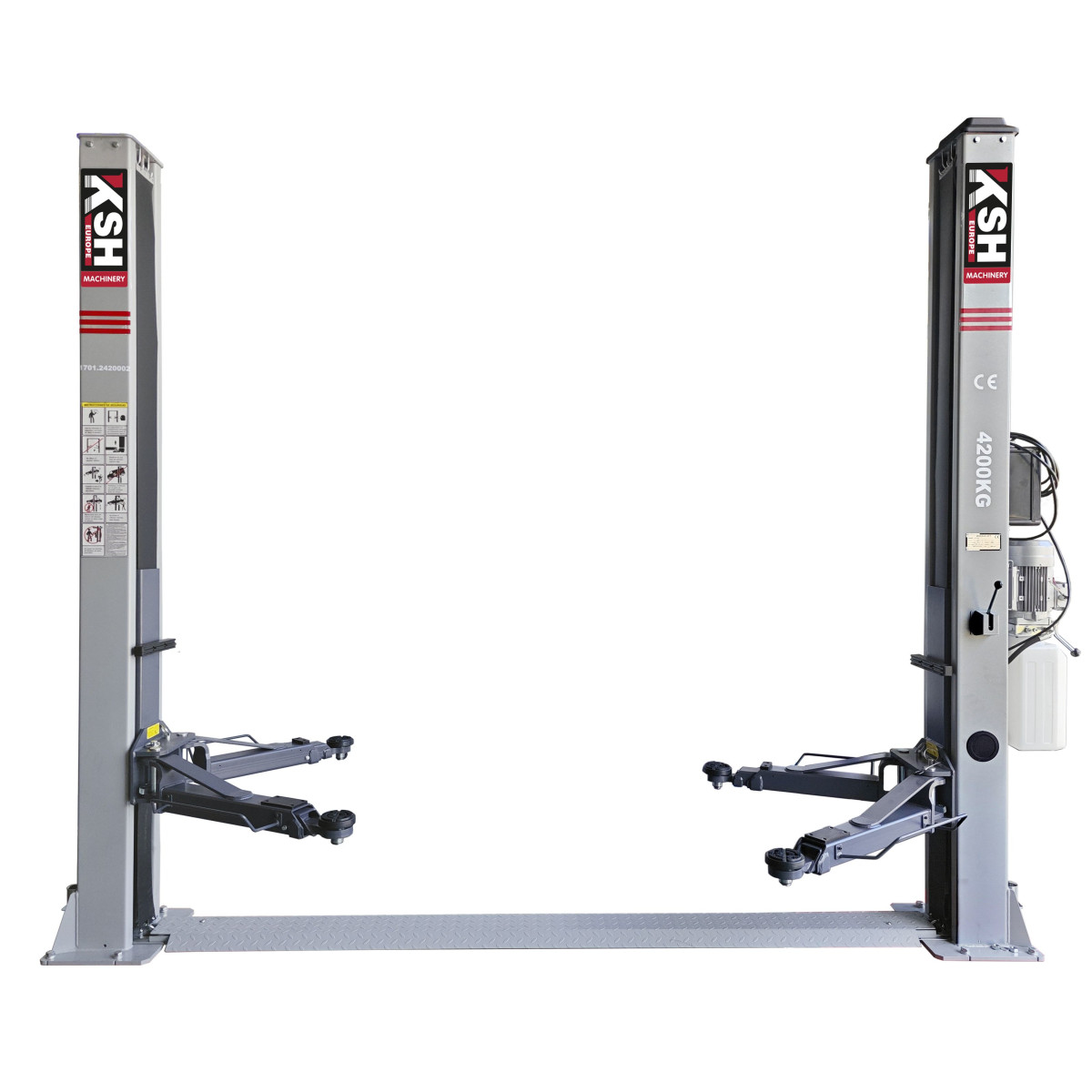

2 Post Lift Semi-automatic 4,2T 400V

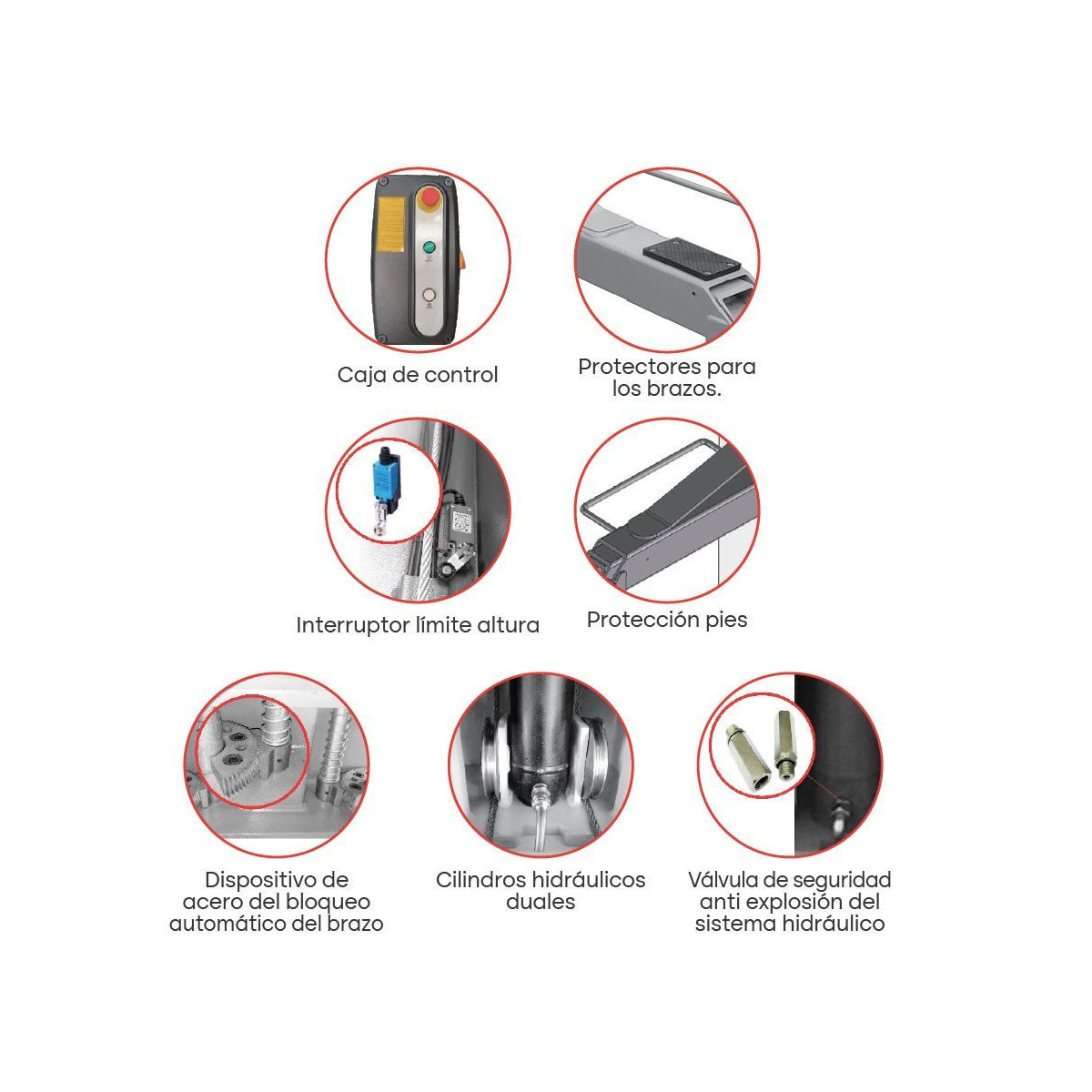

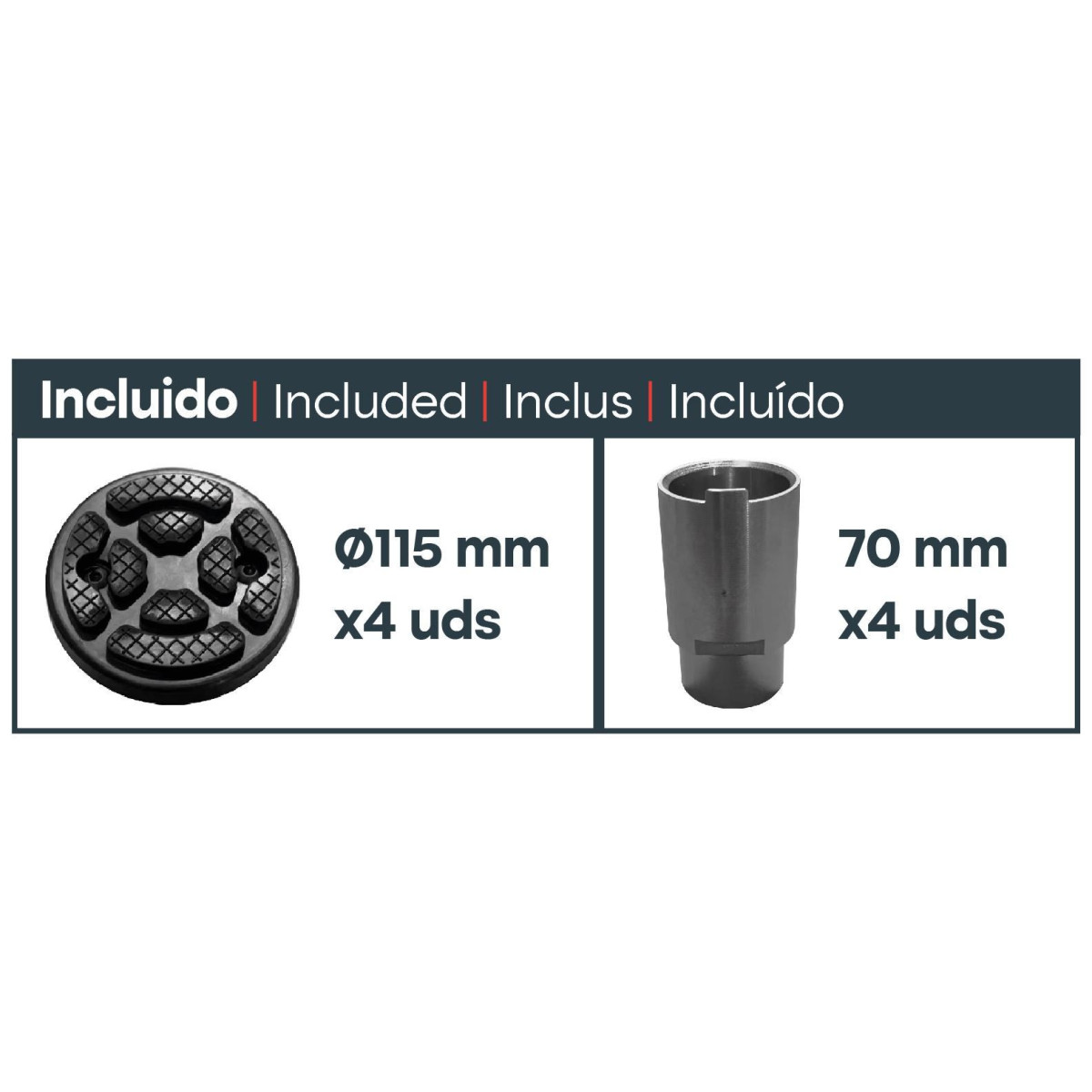

Designed to meet the demands of professional workshops, the 4.2 tonne capacity semi-automatic 2-post lift offers a reliable, robust and safe solution for maintenance and repair operations. Its design includes multiple protections for the vehicle and operator, such as three-height adjustable rubber pads, arm and door guards, and a cable synchronisation system that ensures uniform lifting. The 5 mm thick steel structure and aluminium engine provide excellent durability and performance. In addition, it incorporates a hydraulic system with double cylinder, anti-explosion safety valve and CE Certification, ensuring compliance with European safety regulations.
Unit Sale:
1 pc
Qty Ind Box:
1

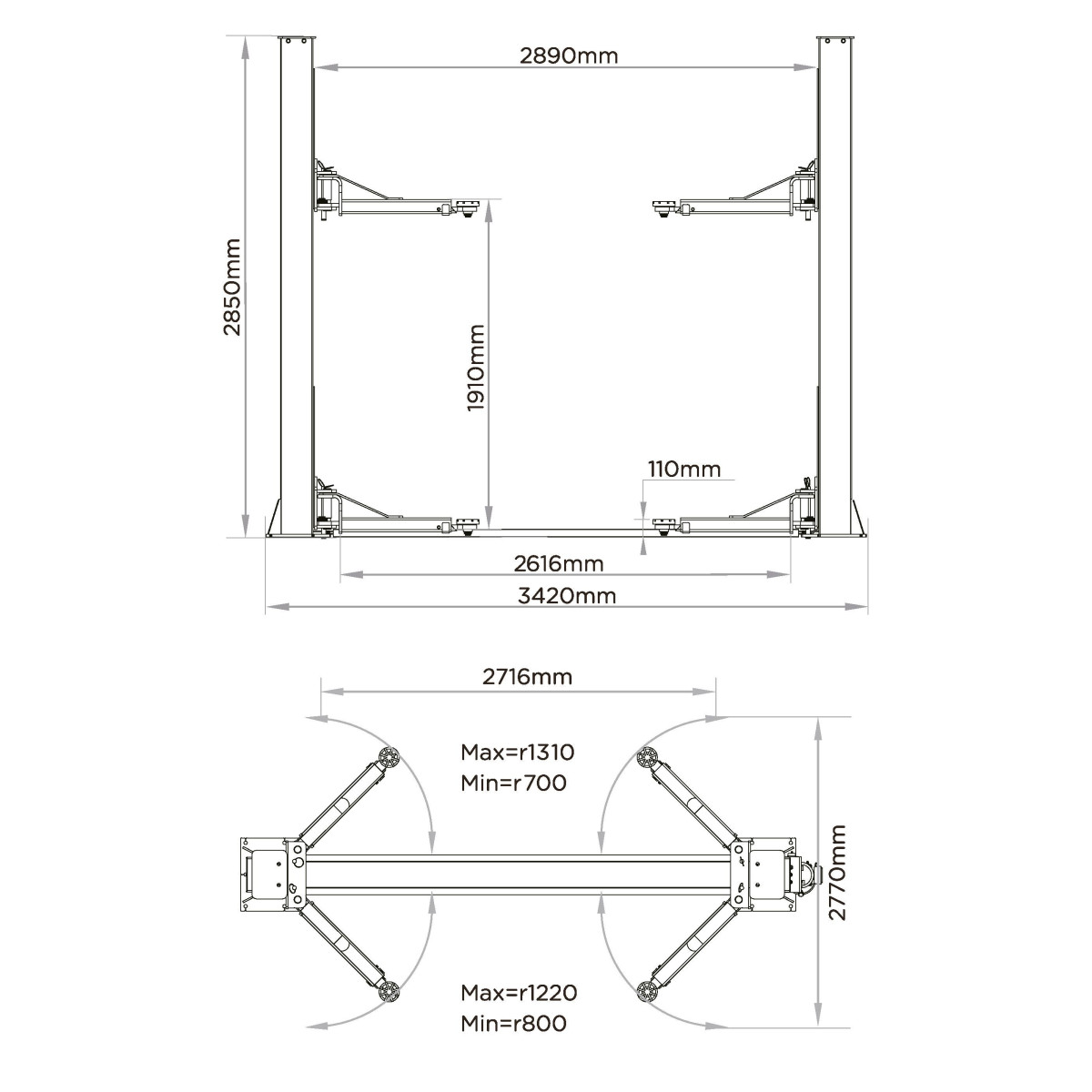

- Maximum load capacity: 4.2T
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 400V 50Hz 3PH
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s.
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 573.50 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm
EAN-13, GTIN, UCC8421779827308
- Maximum load capacity: 4.2T
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 400V 50Hz 3PH
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s.
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 573.50 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm
