Reference1701.2420003

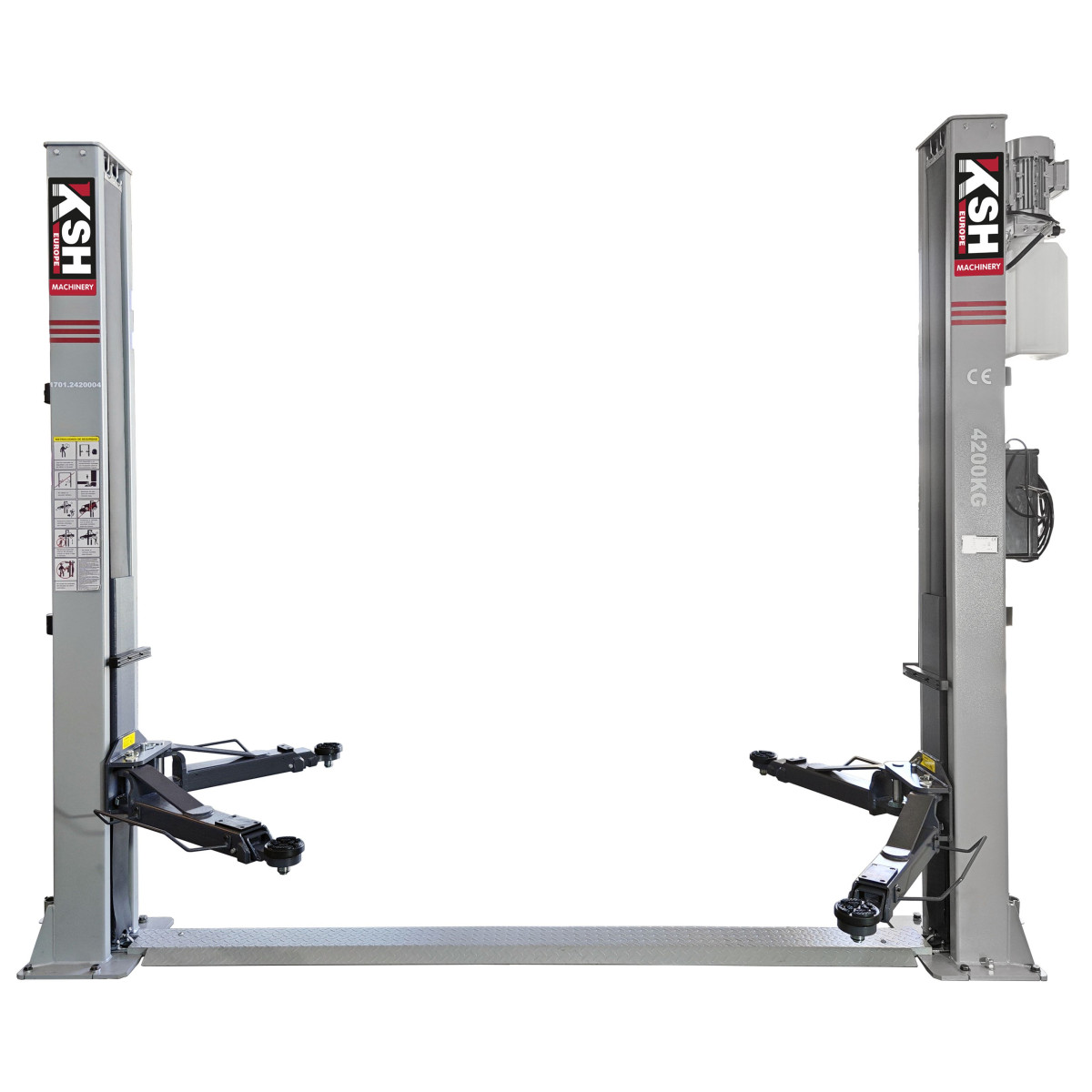

2 Post Lift Automatic 4,2T 230V
Robustness and efficiency for professional lifting

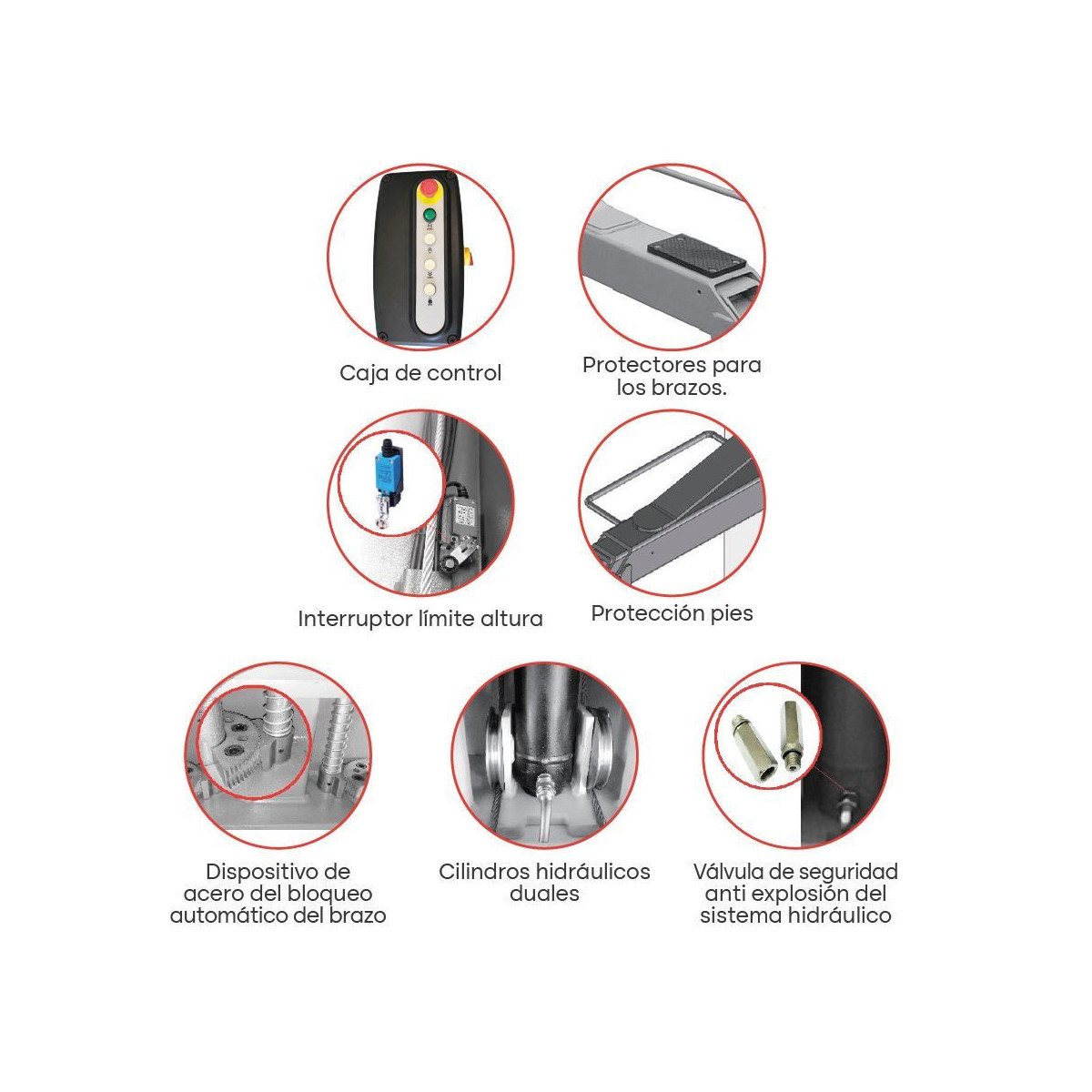

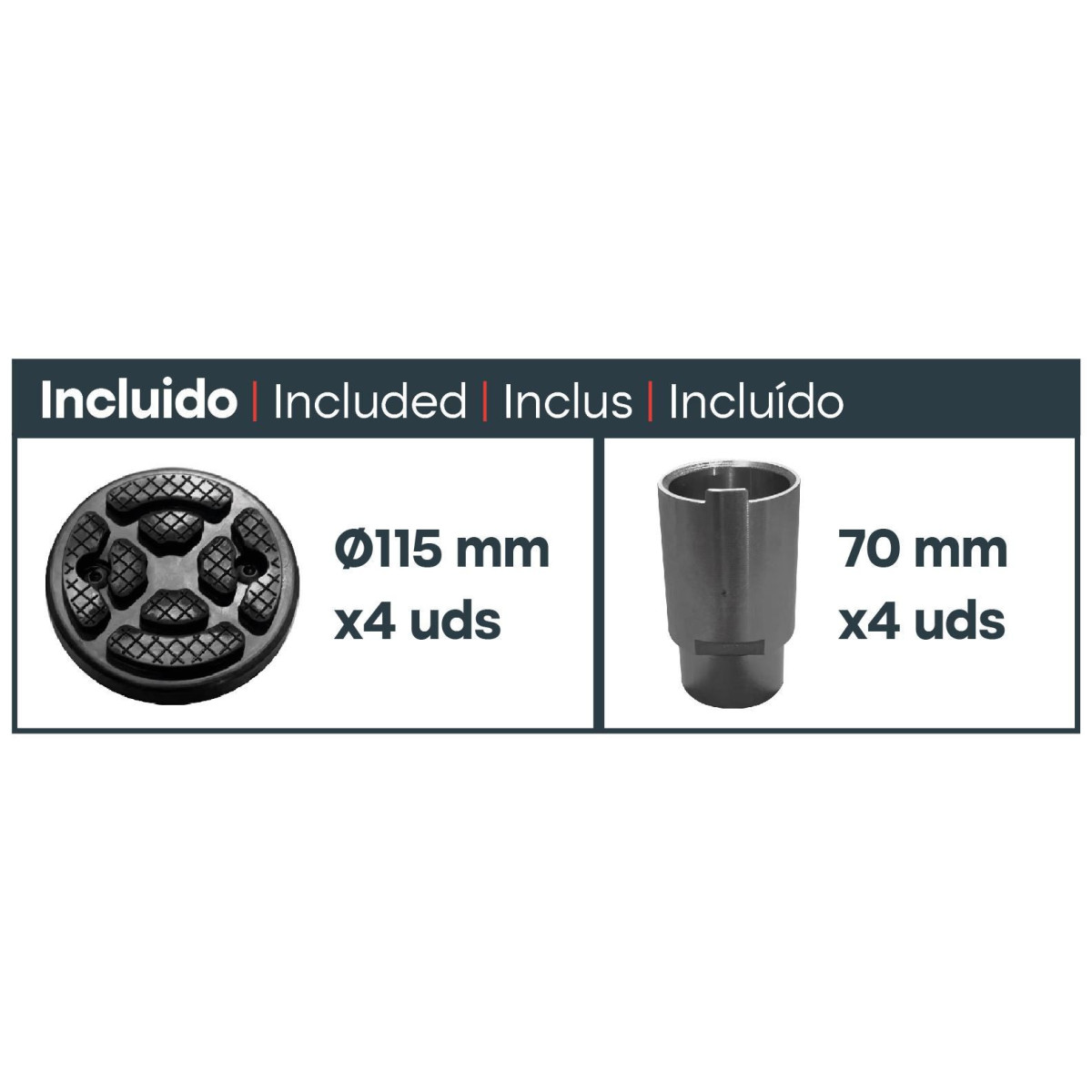

This automatic 2-post lift, with a capacity of 4.2 tonnes, is designed for workshops looking for durability and safety in every operation. Its 5 mm steel structure and hydraulic system with explosion-proof safety valve guarantee reliable performance. It features telescopic arms with synchronised cables for uniform lifting, and complete safety equipment: Ø115 mm and 70 mm rubber pads, door and arm guards, automatic locking, chain guard with accessible grease nipple, and height limit switch with foot protection. Its advanced design and CE certification make it a professional solution for intensive and safe work in the workshop.
Unit Sale:
1 pc
Qty Ind Box:
1

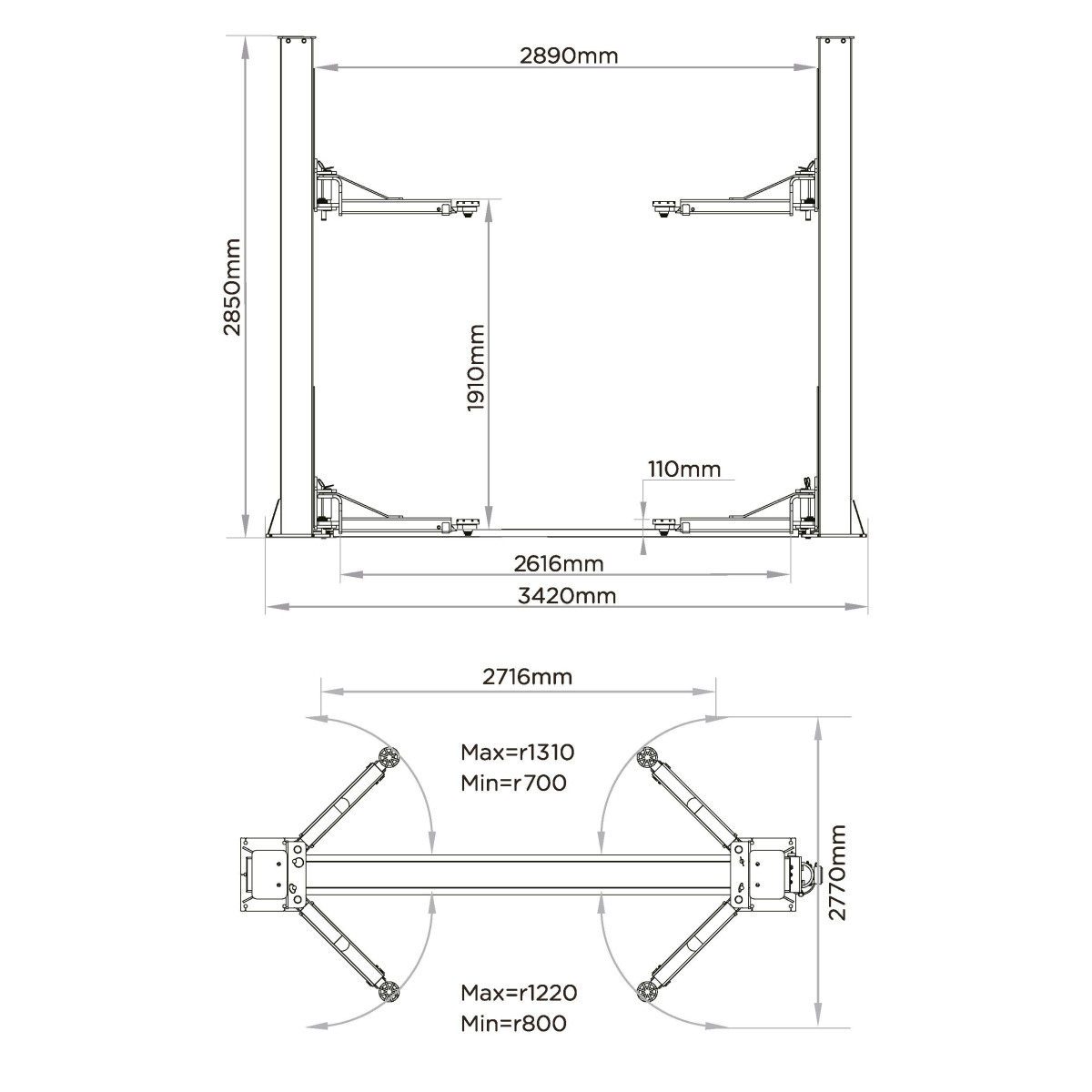

- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 230V 50Hz 1PH.
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s.
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 558 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm.
EAN-13, GTIN, UCC8421779827315
- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 230V 50Hz 1PH.
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s.
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 558 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm.
