Reference1701.2420004

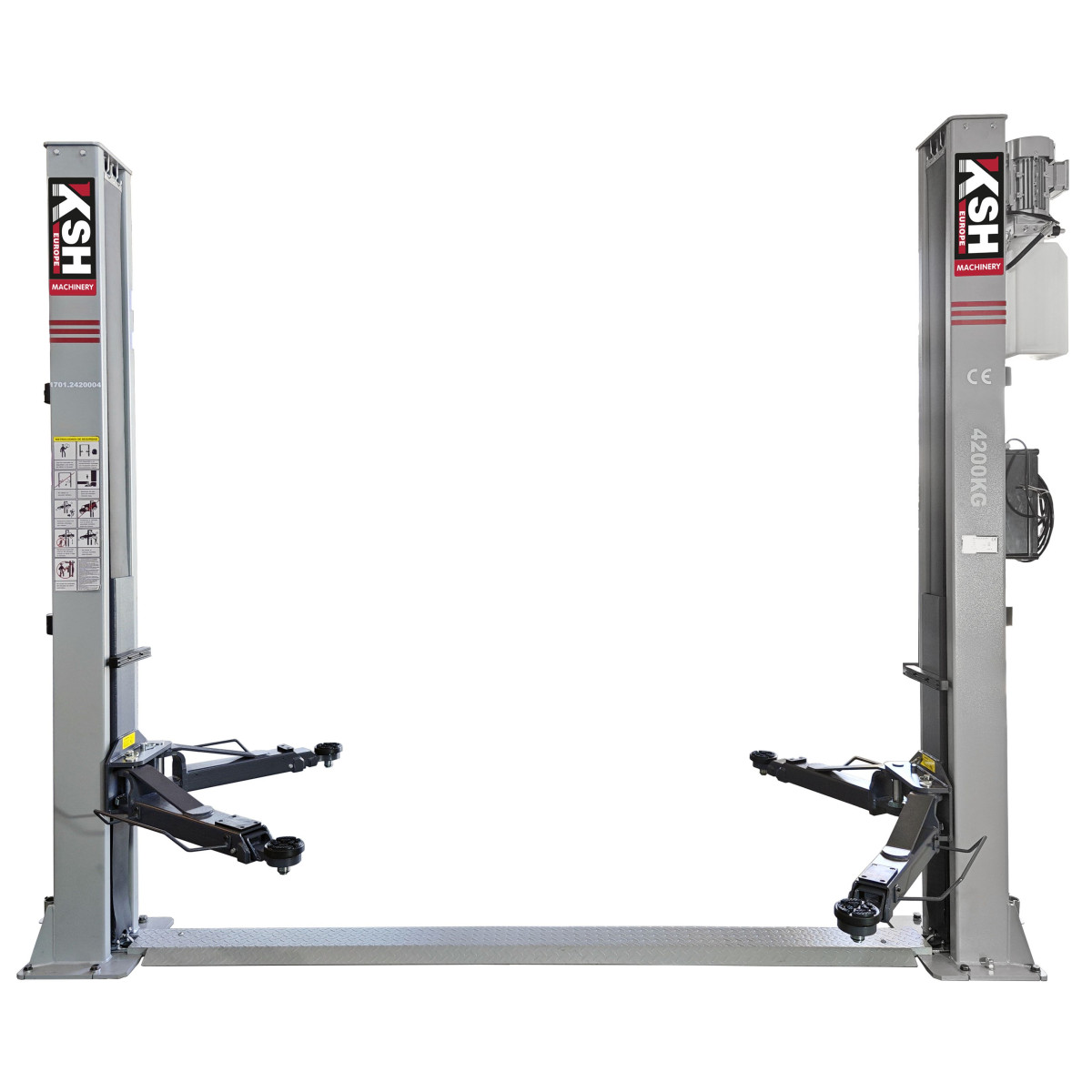

2 Post Lift Automatic 4,2T 400V

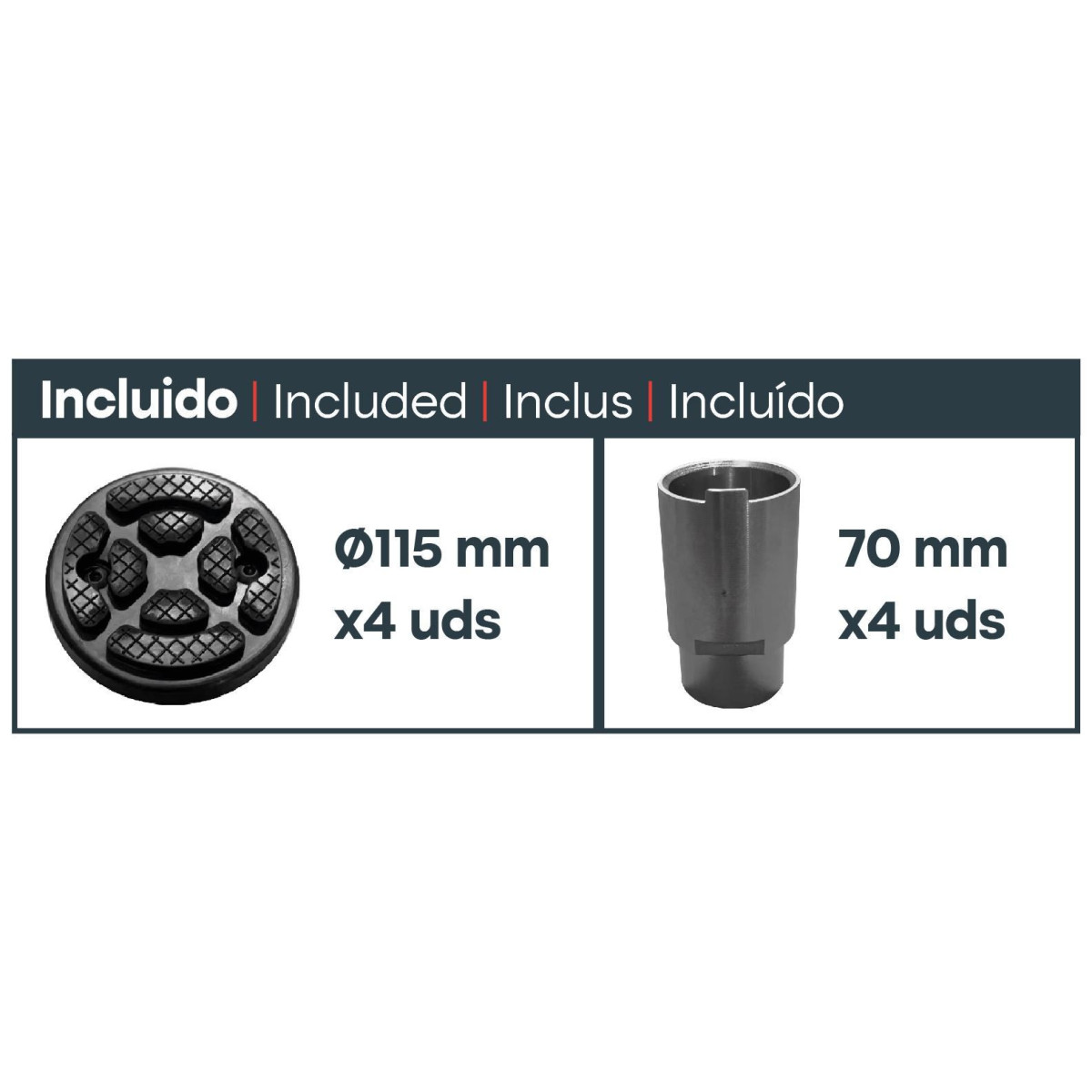

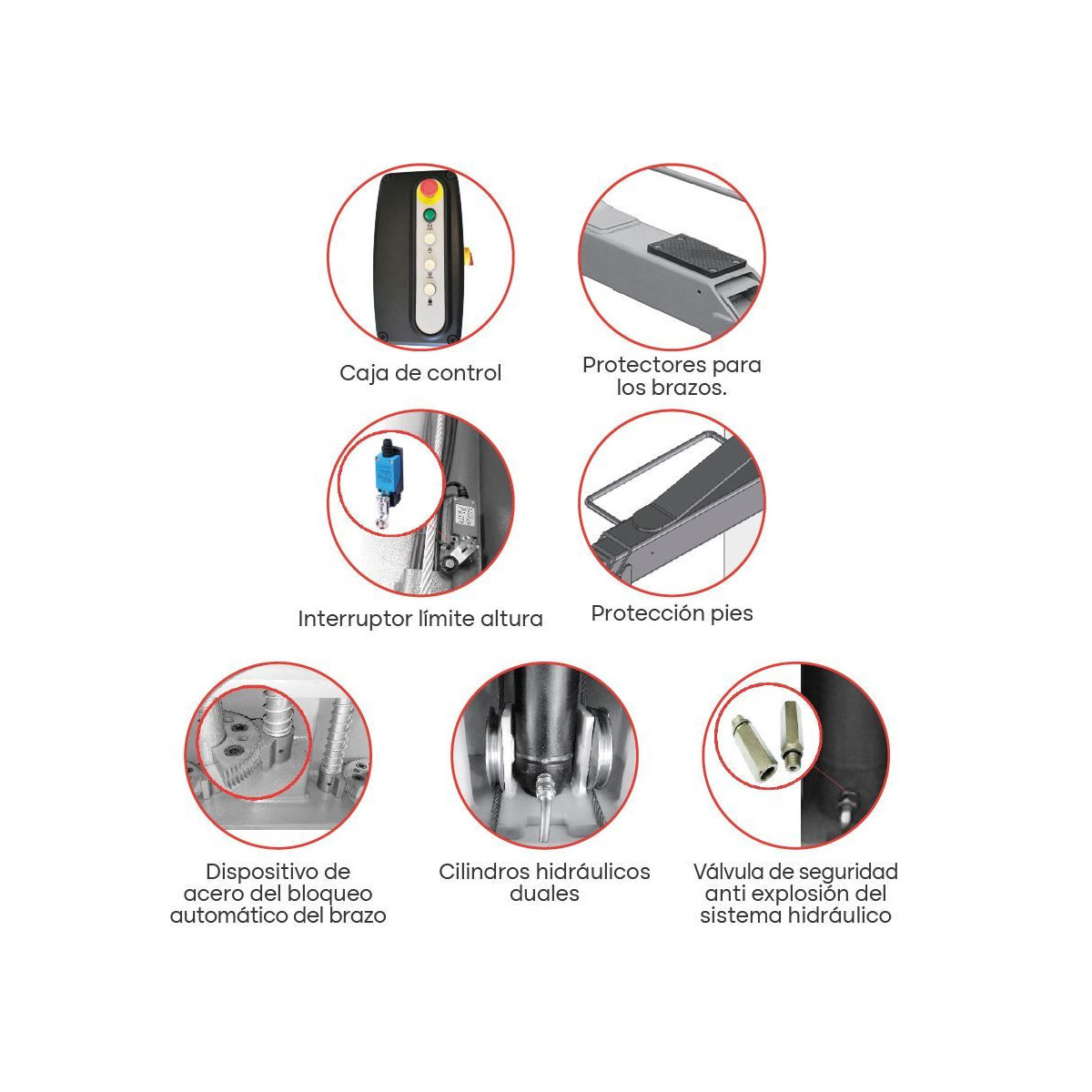

The 4.2 T Automatic 2-Column Lift offers a reliable and robust solution for workshops that require precision, safety and adaptability in their maintenance operations. Equipped with a cable synchronisation system, 3-height adjustable rubber pads and door protectors, it ensures safe and comfortable vehicle handling. Its 2.2 kW aluminium motor with dust protection and accessible lubrication design ensures efficient performance and long service life. The 5 mm thick steel structure makes it highly resistant to intensive use. CE-certified, it meets the highest quality standards required in the professional sector.
Unit Sale:
1 pc
Qty Ind Box:
1

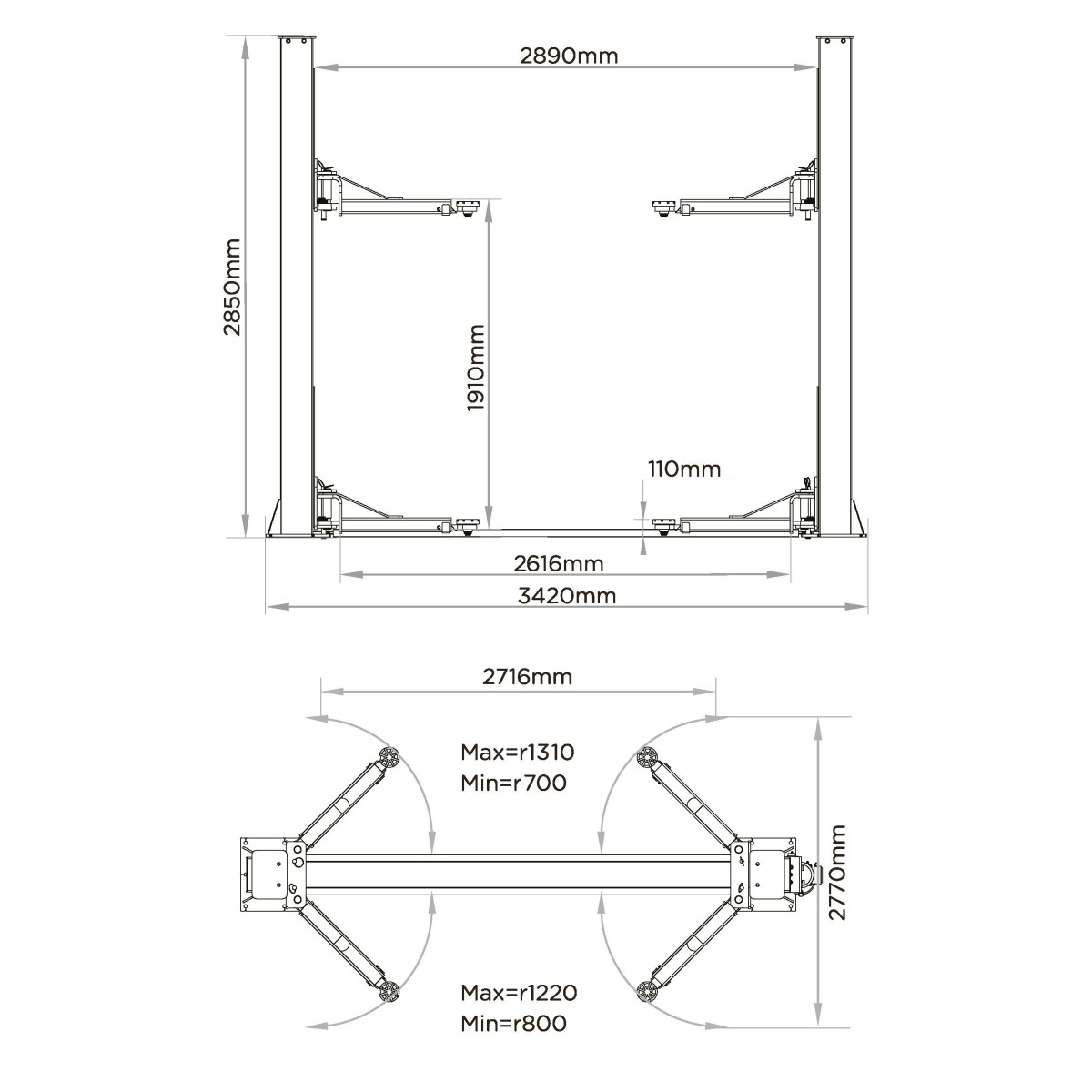

- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 400V 50Hz 3PH
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s
- No. of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220mm, 3: 700/1310mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 558 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm
EAN-13, GTIN, UCC8421779827322
- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 2850 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 400V 50Hz 3PH
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s
- No. of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220mm, 3: 700/1310mm.
- Minimum concrete thickness: 200 mm.
- Net weight: 558 kg.
- Package dimensions: 2935 x 450 x 740mm, 870 x 270 x 310mm
