Reference1701.2420006

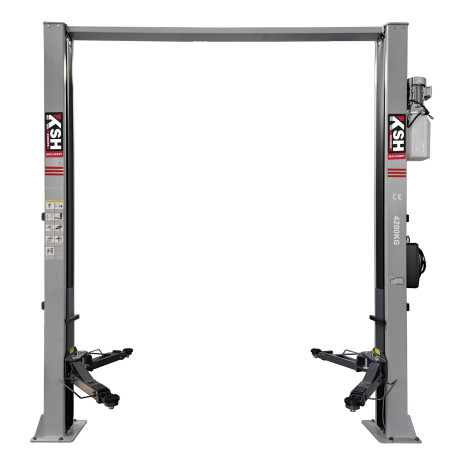

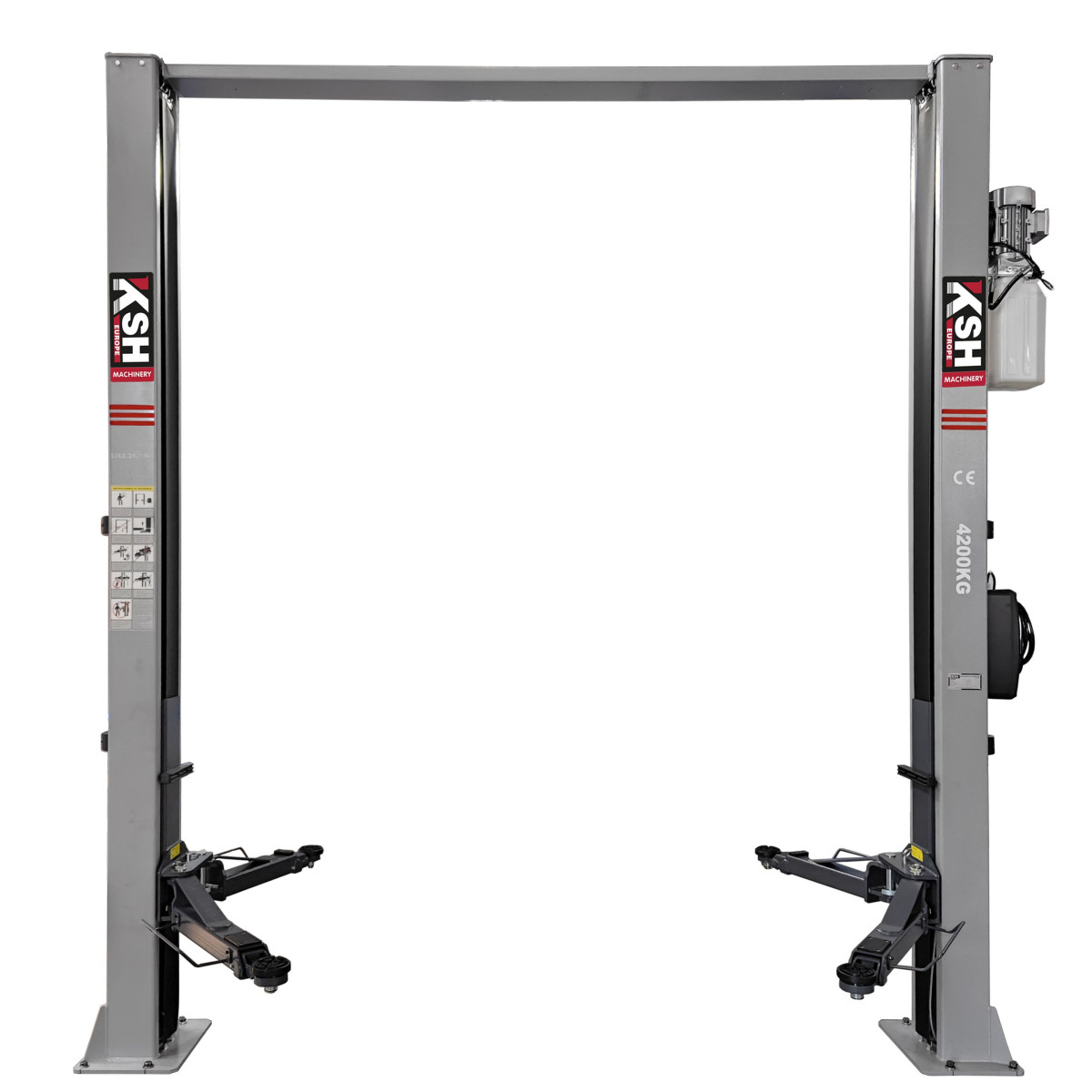

2 Post Lift Automatic with Upper Bridge 4,2T 400V

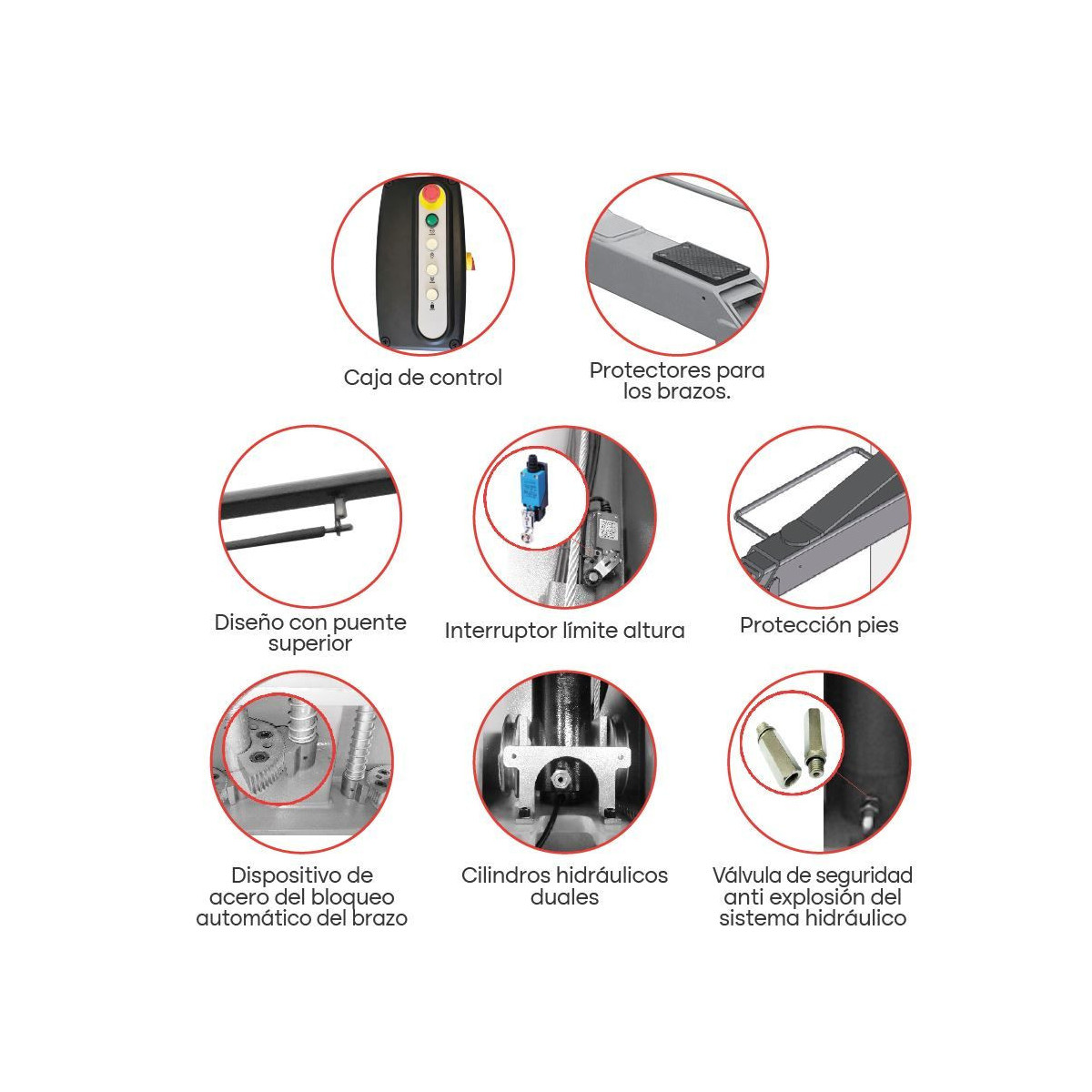

The 4.2T Automatic 2-Post Lift with Top Bridge is a robust, safe and versatile solution for professional workshops. Its 5 mm steel structure and synchronised cable system guarantee uniform and stable lifting up to 4.2 tonnes. Designed for intensive use, it includes a 2.2 kW cast iron motor with fast lifting and lowering cycles. Additional safety is provided by door guards, 2-height adjustable rubber pads, foot protection and arm guards. It has a safety valve to prevent the hydraulic system from exploding. Aluminium engine, chain guard, easy access grease nipple design. Complies with CE certification.
Unit Sale:
1 pc
Qty Ind Box:
1

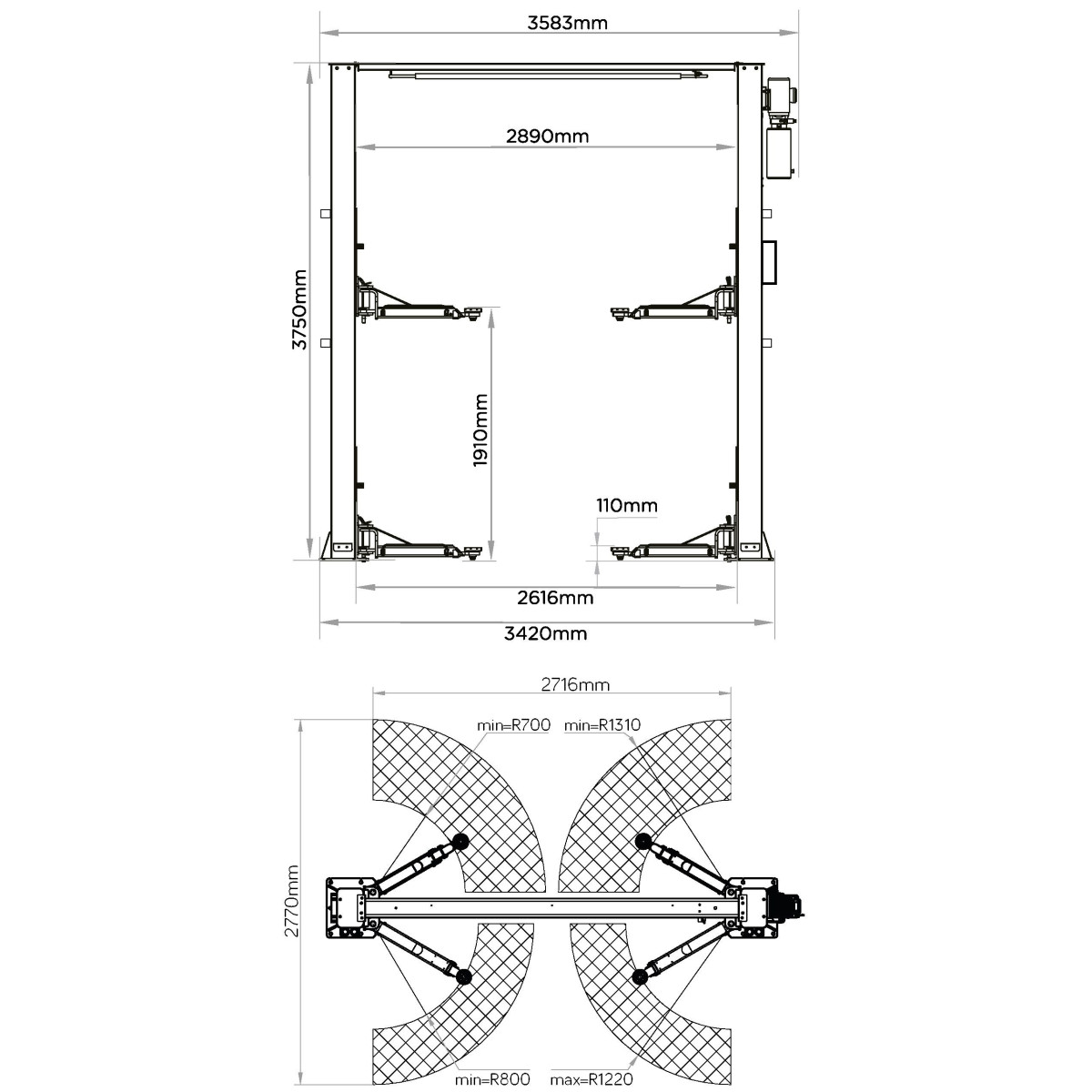

- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 3750 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 400V 50Hz 3PH.
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Net weight: 621.50 kg.
- Package dimensions: 3840 x 455 x 750 mm, 870 x 270 x 310 mm
EAN-13, GTIN, UCC8421779827339
- Maximum load capacity: 4.2T.
- Maximum lift height: 1910 mm.
- Minimum height: 110 mm.
- Overall height: 3750 mm.
- Overall width: 3420 mm.
- Width between columns: 2890 mm.
- Useful width between columns: 2616 mm.
- Motor power: 2.2 kW.
- Power supply: 400V 50Hz 3PH.
- Steel thickness: 5 mm.
- Lifting / lowering time: ≤ 45 s
- Number of arms: 2+3.
- Arm dimensions (min-max): 2: 800/1220 mm, 3: 700/1310 mm.
- Net weight: 621.50 kg.
- Package dimensions: 3840 x 455 x 750 mm, 870 x 270 x 310 mm
