Reference1702.2350001
Surface Scissors Lift 3,5T 230V
The 3.5T Scissor Lifts of surface are designed to offer a safe, precise and efficient lifting solution in professional workshops. Thanks to their photocell levelling system and double hydraulic drive, they guarantee uniform lifting with maximum reliability. They incorporate safety elements such as anti-detonation valves, an overload system and manual lowering in the event of electrical failure. Their robust structure in reinforced steel, combined with extendable ramps, allows them to work with a wide variety of vehicles. In addition, its high-performance engine and low noise level ensure efficient and comfortable operation, complying with the quality standards required by CE Certification.
Unit Sale:
1 pc
Qty Ind Box:
1
- Maximum load capacity: 3.5 T.
- Sound level: ≤ 75 dB.

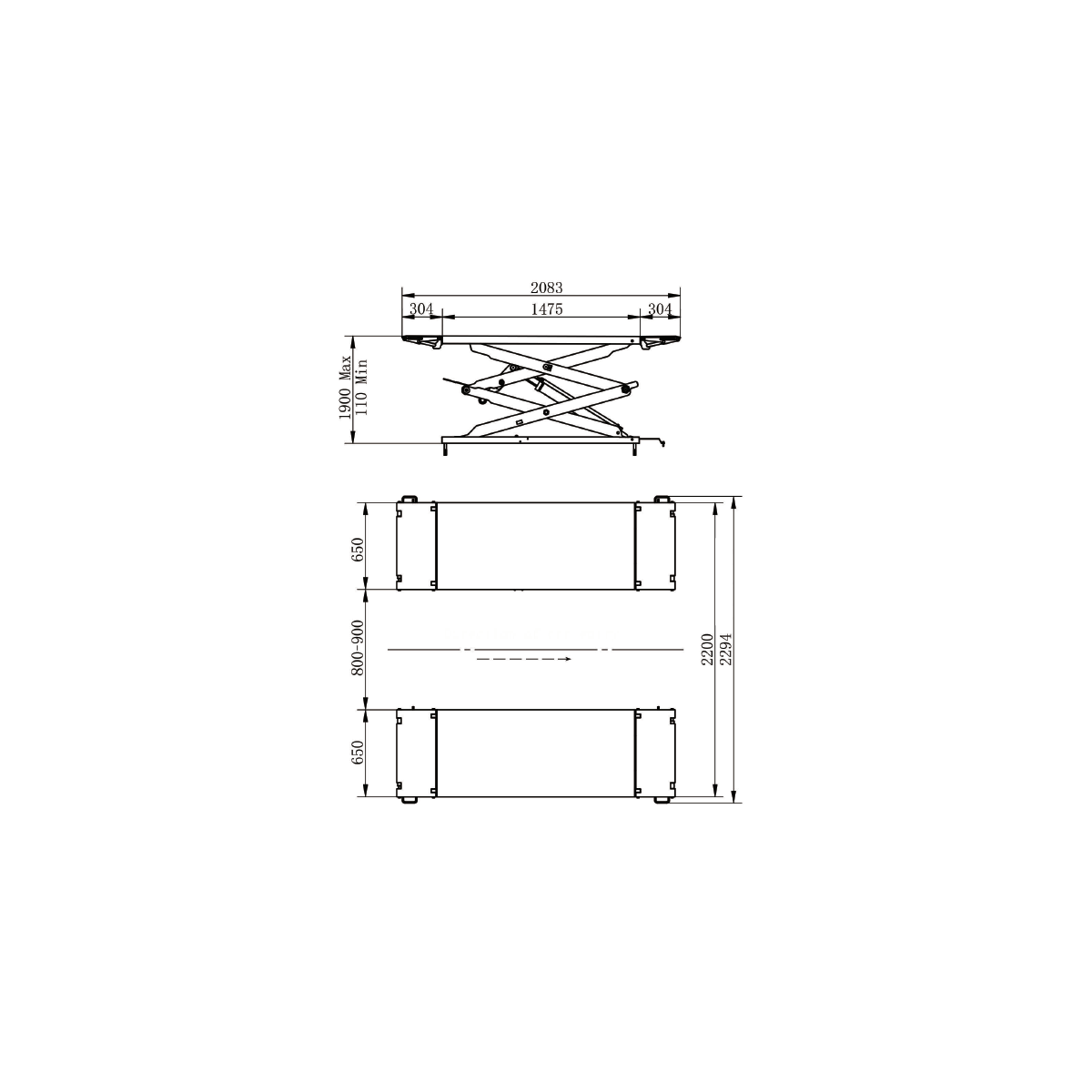

- Overall width: 2294 mm
- Overall length: 2083 mm.
- Maximum height (elevation): 1900 mm.
- Minimum height: 110 mm.
- Ramp length: 1475-2083 mm.
- Ramp width: 650 mm.
- Recommended width between lifting platforms*: 800 to 900 mm.
- Motor power: 2,2 kW.
- Power supply: 230V 50Hz 1PH
- Lifting time: ≤ 60 s.
- Lowering time: ≤ 30 s.
- Air pressure: 22 Mpa.
- Compressor pressure: 4–6 bar.
- Steel thickness (ramps): 6 mm.
- Net weight: 899 kg.
- Package dimensions: 2120 x 750 x 365 mm, 425 x 485 x 1140 mm.
- *Install according to the wheelbase of the most common vehicles in the workshop.
EAN-13, GTIN, UCC8421779827353
- Maximum load capacity: 3.5 T.
- Sound level: ≤ 75 dB.
- Overall width: 2294 mm
- Overall length: 2083 mm.
- Maximum height (elevation): 1900 mm.
- Minimum height: 110 mm.
- Ramp length: 1475-2083 mm.
- Ramp width: 650 mm.
- Recommended width between lifting platforms*: 800 to 900 mm.
- Motor power: 2,2 kW.
- Power supply: 230V 50Hz 1PH
- Lifting time: ≤ 60 s.
- Lowering time: ≤ 30 s.
- Air pressure: 22 Mpa.
- Compressor pressure: 4–6 bar.
- Steel thickness (ramps): 6 mm.
- Net weight: 899 kg.
- Package dimensions: 2120 x 750 x 365 mm, 425 x 485 x 1140 mm.
- *Install according to the wheelbase of the most common vehicles in the workshop.
