Reference1702.2350003
Built-in Scissor Lift 3,5T 230V
The 3.5T Built-In Scissor Lift is designed to meet the demands of modern workshops looking for efficiency, reliability and safety in their daily operations. Its recessed structure optimises working space and allows stable and quiet lifting of vehicles up to 3.5 tonnes. It incorporates photocell levelling technology, extendable ramps and a complete hydraulic system with double drive and multiple safety elements. The lowering control includes an alarm and protection system, which increases the operator's confidence during each work cycle. Certified in accordance with CE regulations.
Unit Sale:
1 pc
Qty Ind Box:
1
- Maximum load capacity: 3.5 T.
- Sound level: ≤ 75 dB.

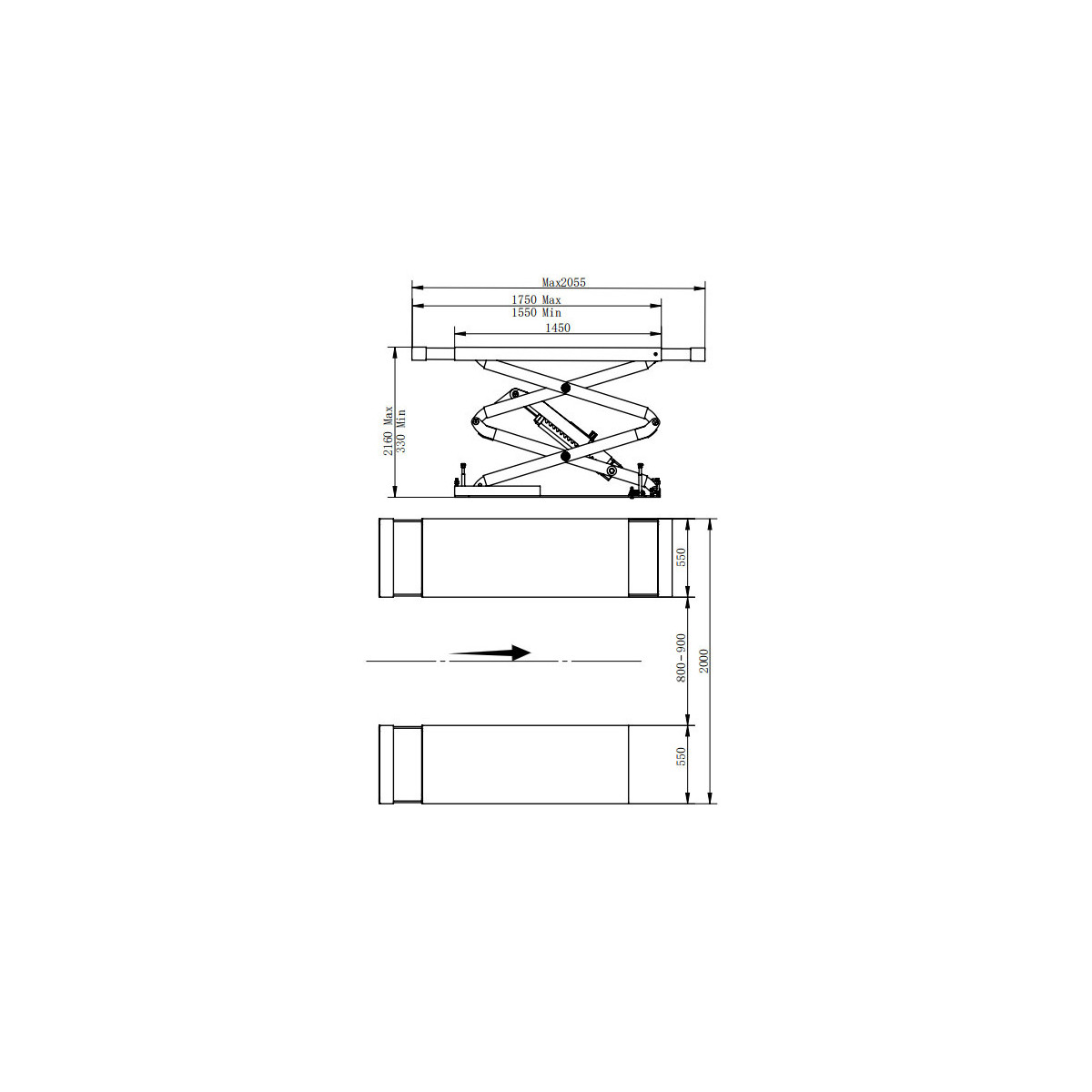

- Overall width: 2000 mm.
- Overall length: 2055 mm.
- Maximum height (lift): 2160 mm.
- Minimum height: 330 mm.
- Ramp length: 1450-2055 mm.
- Ramp width: 550 mm.
- Recommended distance between runways*: 800 to 900 mm.
- Motor power: 2,2 kW.
- Power supply: 230V 50Hz 1PH.
- Lifting time: ≤ 60 s.
- Lowering time: ≤ 30 s.
- Air pressure: 22 Mpa.
- Compressor pressure: 4–6 bar.
- Steel thickness (ramps): 5 mm.
- Net weight: 700 kg.
- Package dimensions: 1700 x 605 x 850 mm, 425 x 485 x 1140 mm.
- *Install according to the wheelbase of the most common vehicles in the workshop.
EAN-13, GTIN, UCC8421779827377
- Maximum load capacity: 3.5 T.
- Sound level: ≤ 75 dB.
- Overall width: 2000 mm.
- Overall length: 2055 mm.
- Maximum height (lift): 2160 mm.
- Minimum height: 330 mm.
- Ramp length: 1450-2055 mm.
- Ramp width: 550 mm.
- Recommended distance between runways*: 800 to 900 mm.
- Motor power: 2,2 kW.
- Power supply: 230V 50Hz 1PH.
- Lifting time: ≤ 60 s.
- Lowering time: ≤ 30 s.
- Air pressure: 22 Mpa.
- Compressor pressure: 4–6 bar.
- Steel thickness (ramps): 5 mm.
- Net weight: 700 kg.
- Package dimensions: 1700 x 605 x 850 mm, 425 x 485 x 1140 mm.
- *Install according to the wheelbase of the most common vehicles in the workshop.
