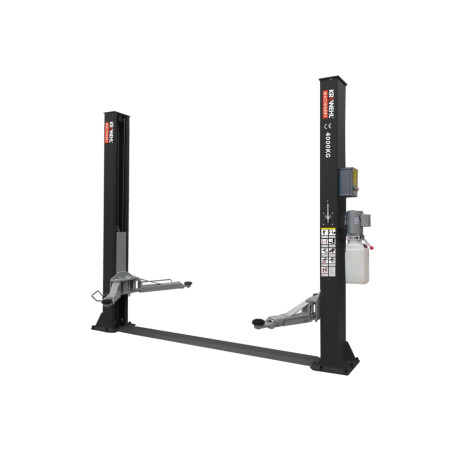

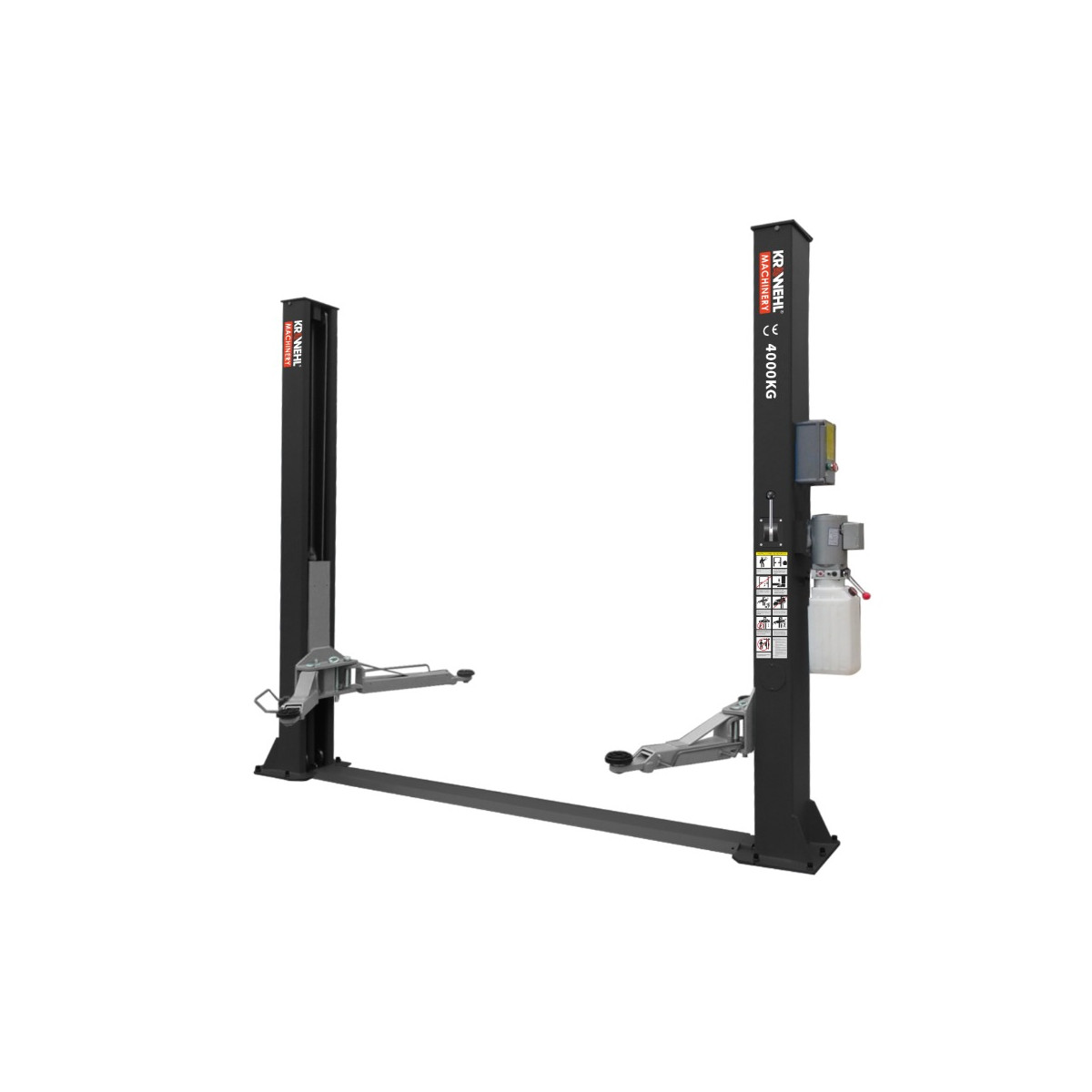

2 Post Lift Semi-Automatic 4T 400V
Power, precision and safety for daily work in the workshop.
The 4T 400V semi-automatic 2-post lift is designed for reliable and efficient performance in any professional workshop environment. Its robust construction, with cable synchronisation and double or triple stage telescopic arms, allows safe and stable lifting for vehicles of different dimensions. Door and foot protectors are included, as well as a height limit switch, which optimises operator safety. Its semi-automatic system facilitates convenient operation, while its low base ensures compatibility with low-profile vehicles. Thanks to its compact and functional design, it is ideal for maintenance, repair and overhaul operations. Complies with European quality standards, certified with CE marking.
- Maximum load capacity: 4T
- Power supply: 400V 50Hz 3PH
- Motor power: 2.2 kW

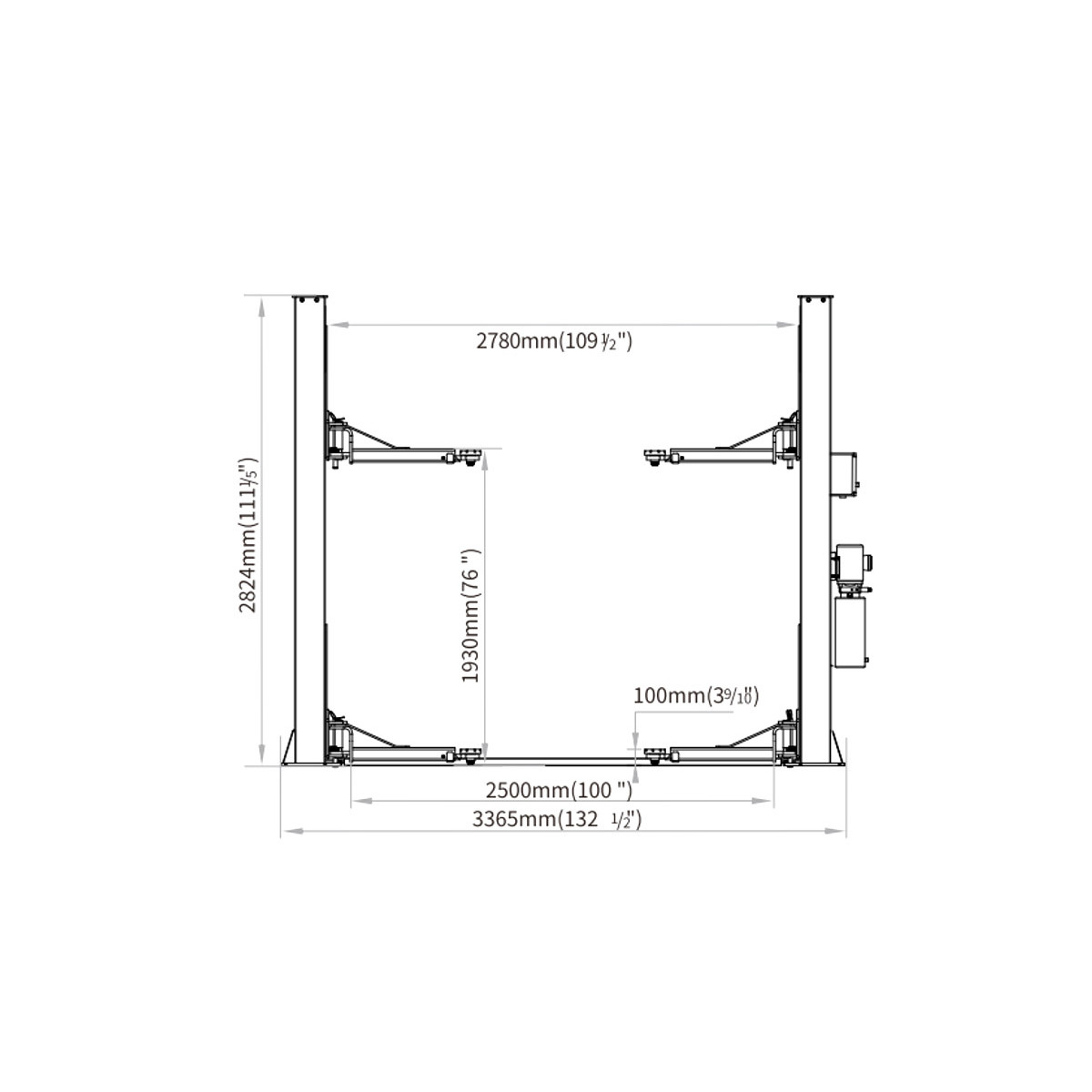

- Maximum lift height: 1930 mm
- Minimum height: 100 mm
- Total height: 2824 mm
- Total width: 3365 mm
- Width between columns: 2780 mm
- Usable width between columns: 2500 mm
- Steel thickness: 4,75 mm
- Lifting / lowering time: ≤50 s
- Number of arms: 2+3
- Arm dimensions (min-max): 2: 715/1330 mm; 3: 830/1260 mm
- Net weight: 575,30 kg
- Package dimensions: 2940×460×750 mm/850x300x250 mm(hydraulic power unit)/330x260x170 mm (control box)

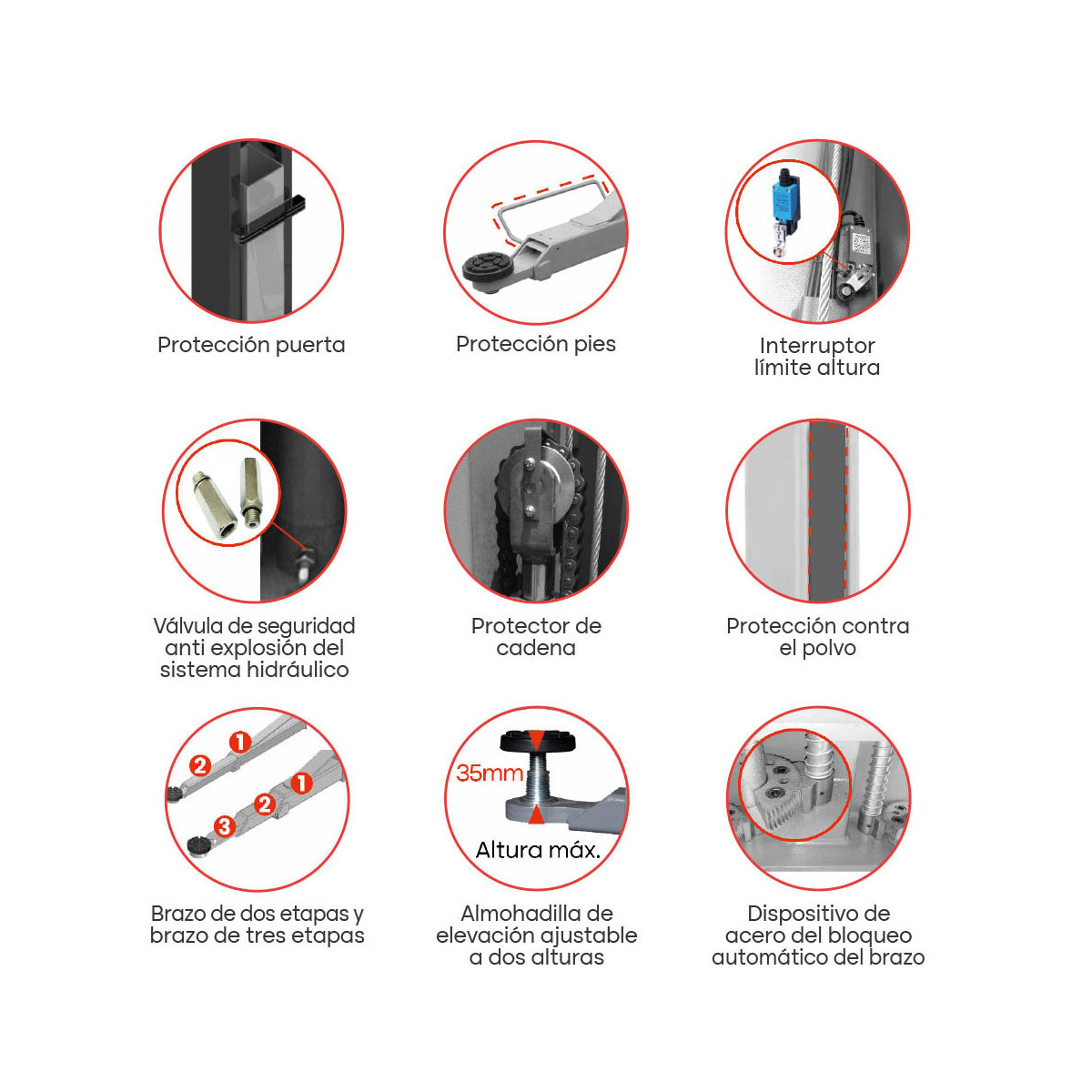

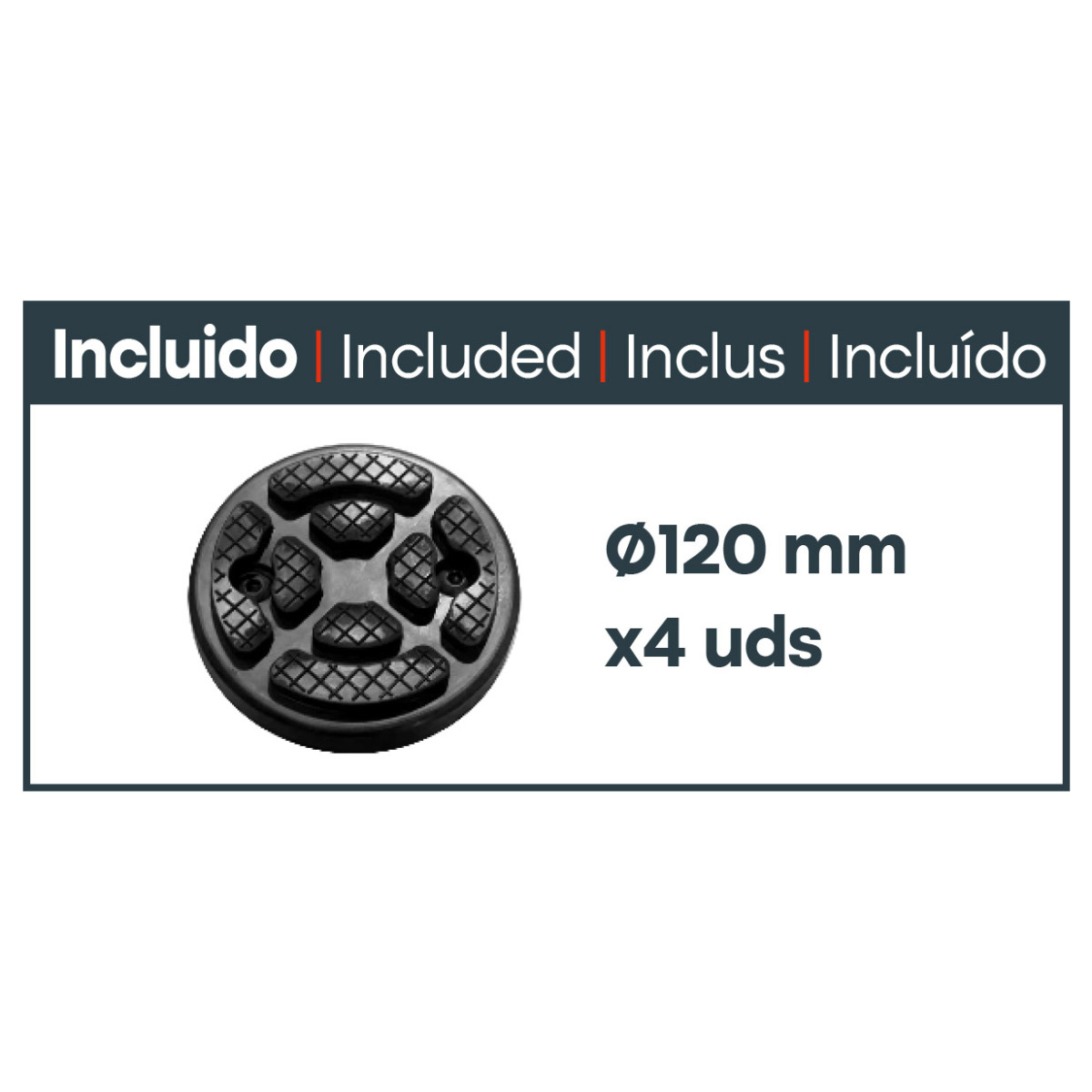

- Includes door guards, dust cover, chain guard, automatic arm lock, adjustable pads
- Certification: CE
- Maximum load capacity: 4T
- Power supply: 400V 50Hz 3PH
- Motor power: 2.2 kW
- Maximum lift height: 1930 mm
- Minimum height: 100 mm
- Total height: 2824 mm
- Total width: 3365 mm
- Width between columns: 2780 mm
- Usable width between columns: 2500 mm
- Steel thickness: 4,75 mm
- Lifting / lowering time: ≤50 s
- Number of arms: 2+3
- Arm dimensions (min-max): 2: 715/1330 mm; 3: 830/1260 mm
- Net weight: 575,30 kg
- Package dimensions: 2940×460×750 mm/850x300x250 mm(hydraulic power unit)/330x260x170 mm (control box)
- Includes door guards, dust cover, chain guard, automatic arm lock, adjustable pads
- Certification: CE
