Reference1701.4450020

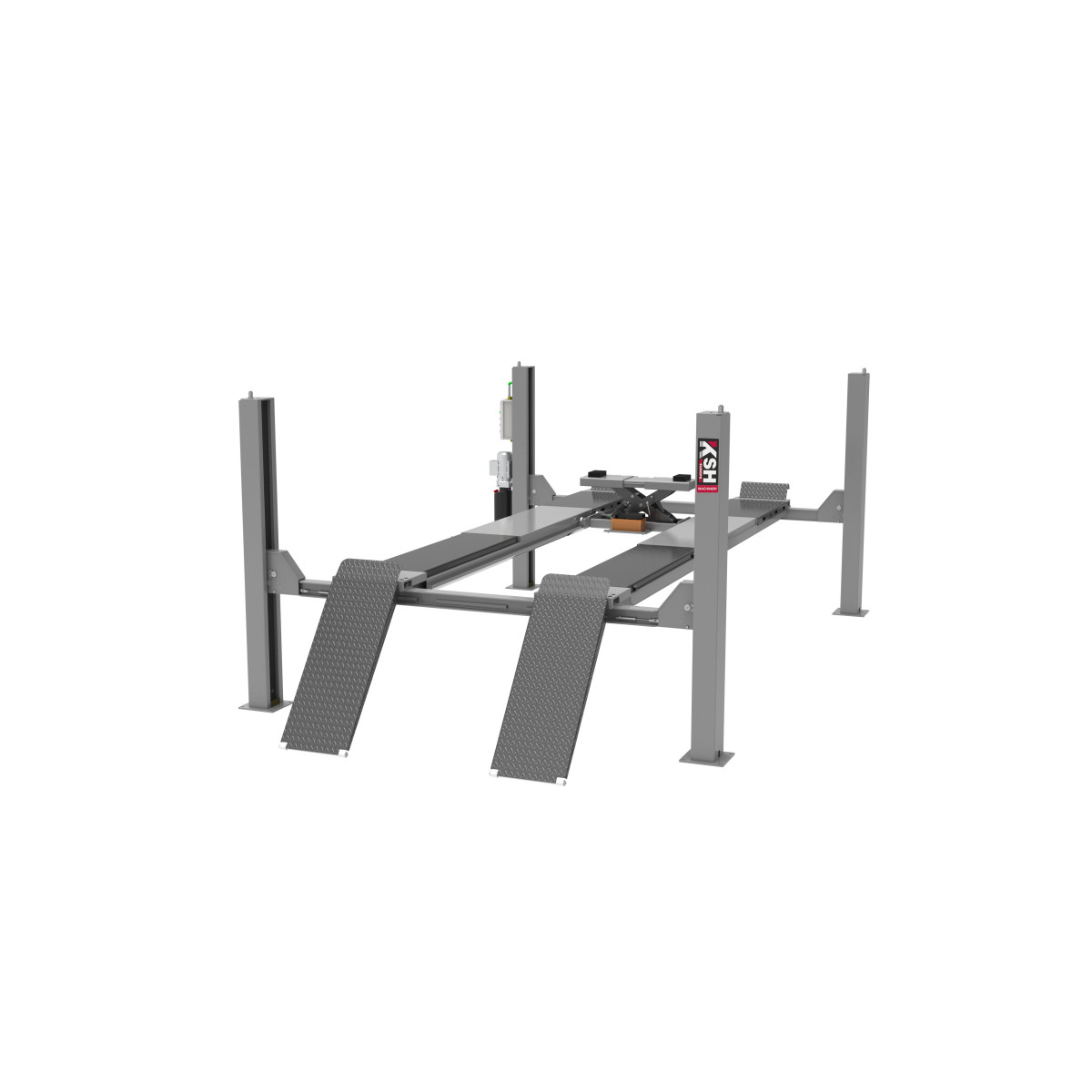

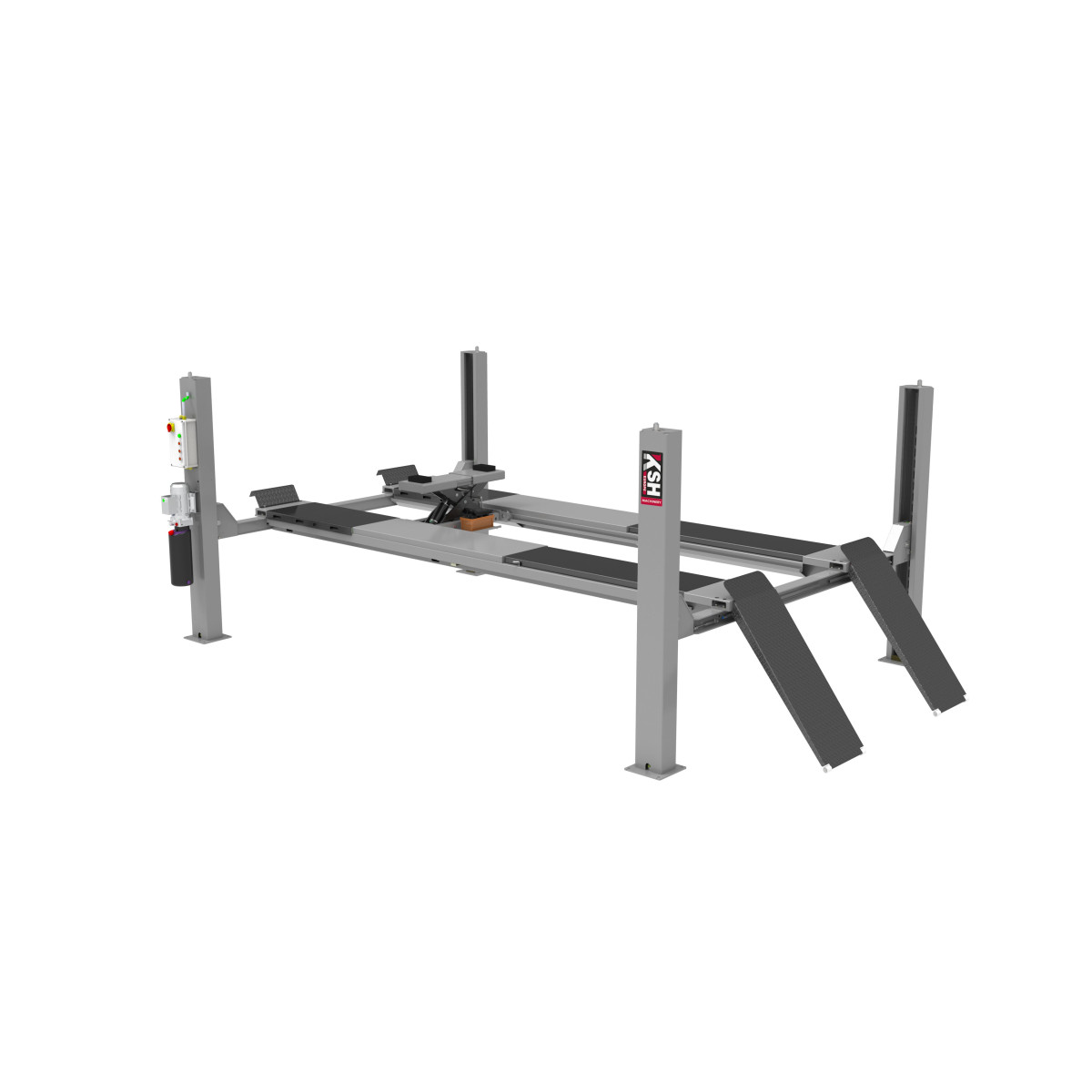

4 Post Lift Automatic 4,5T 400V

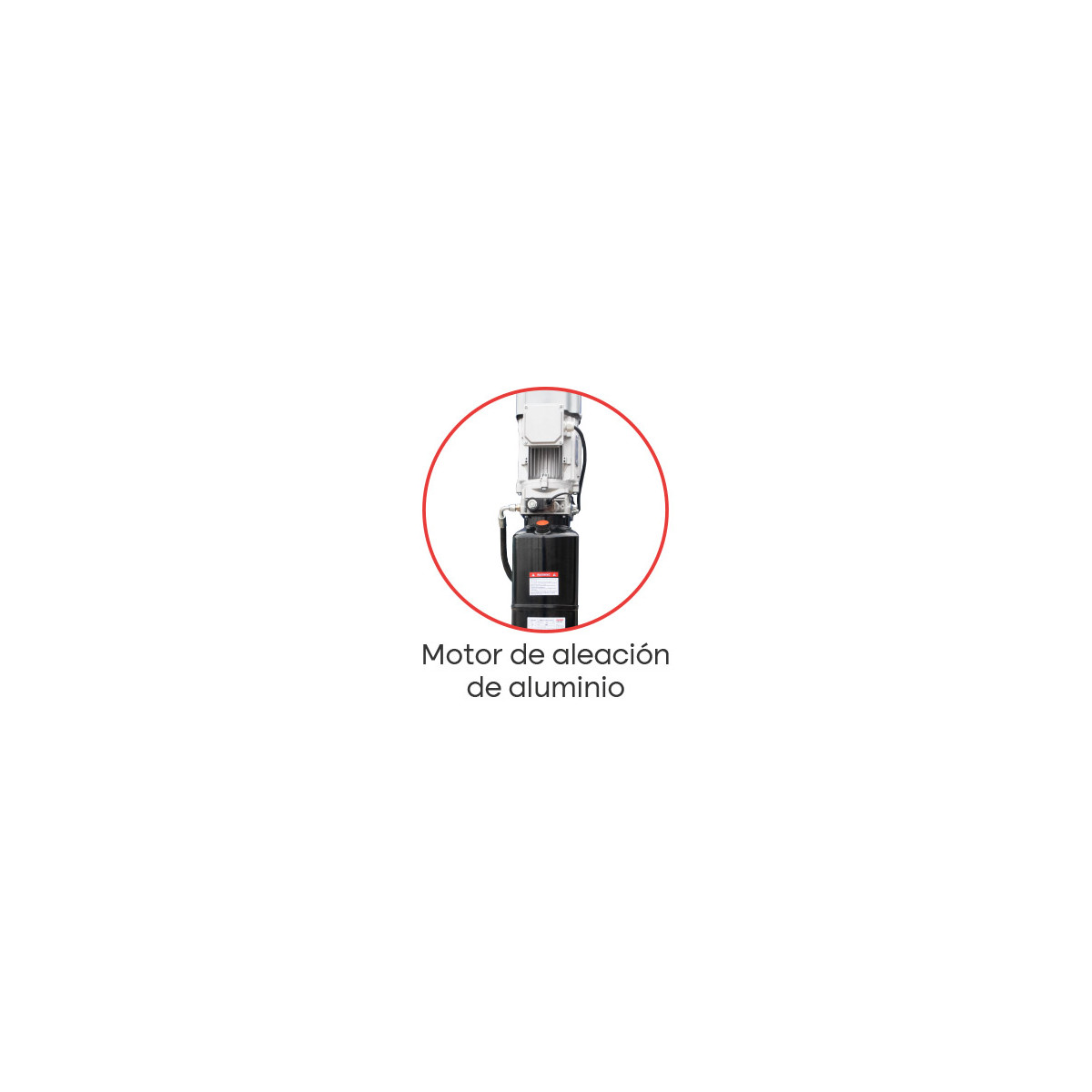

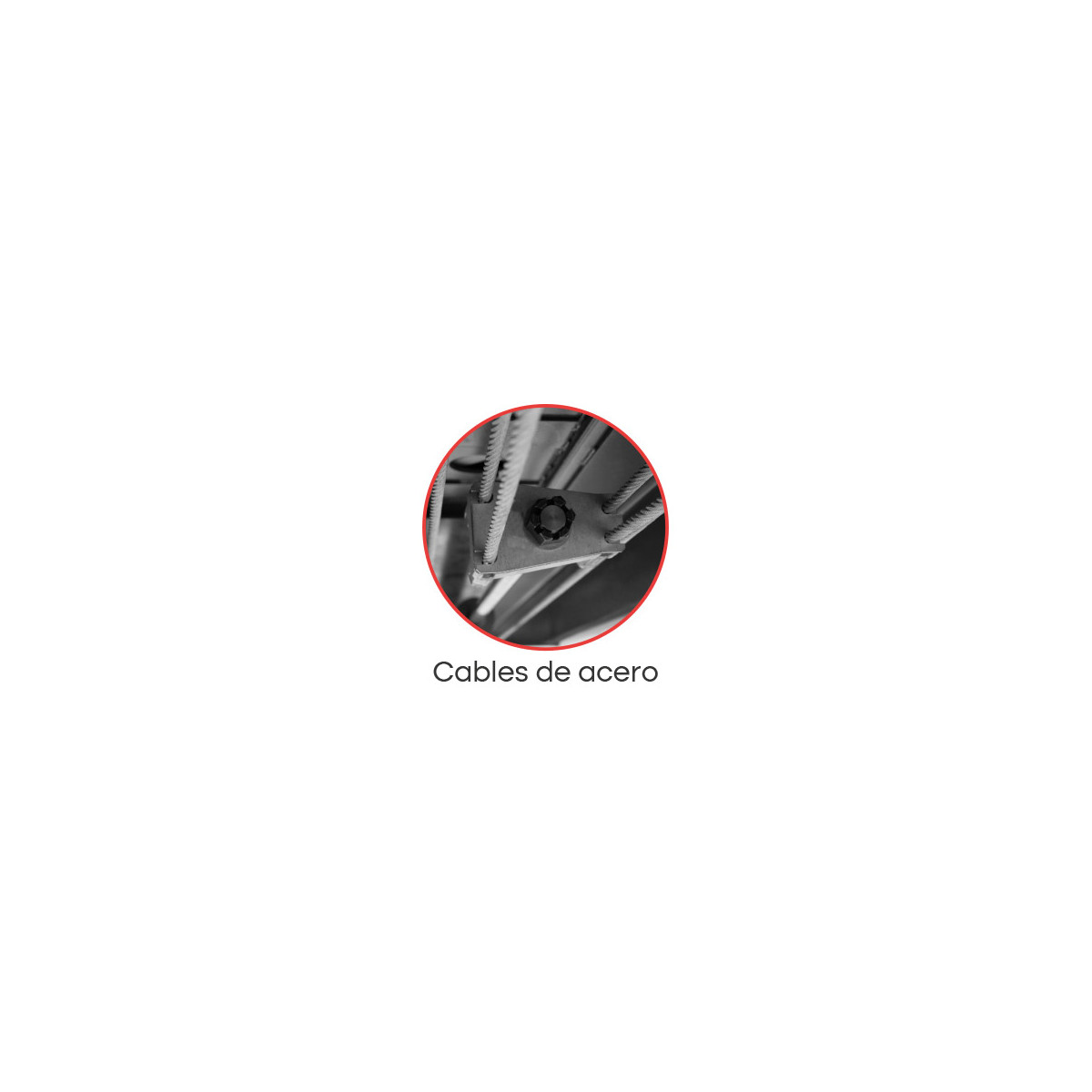

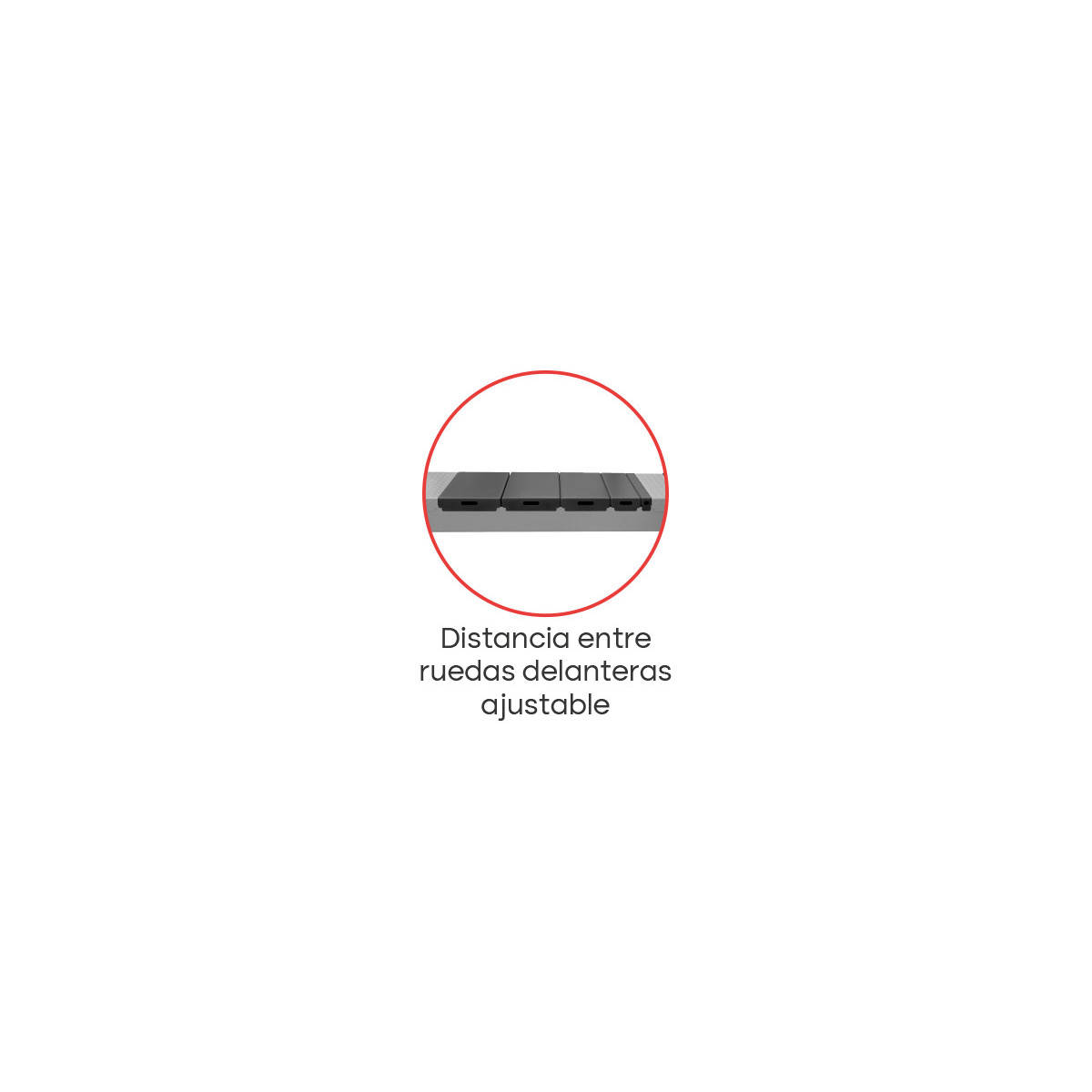

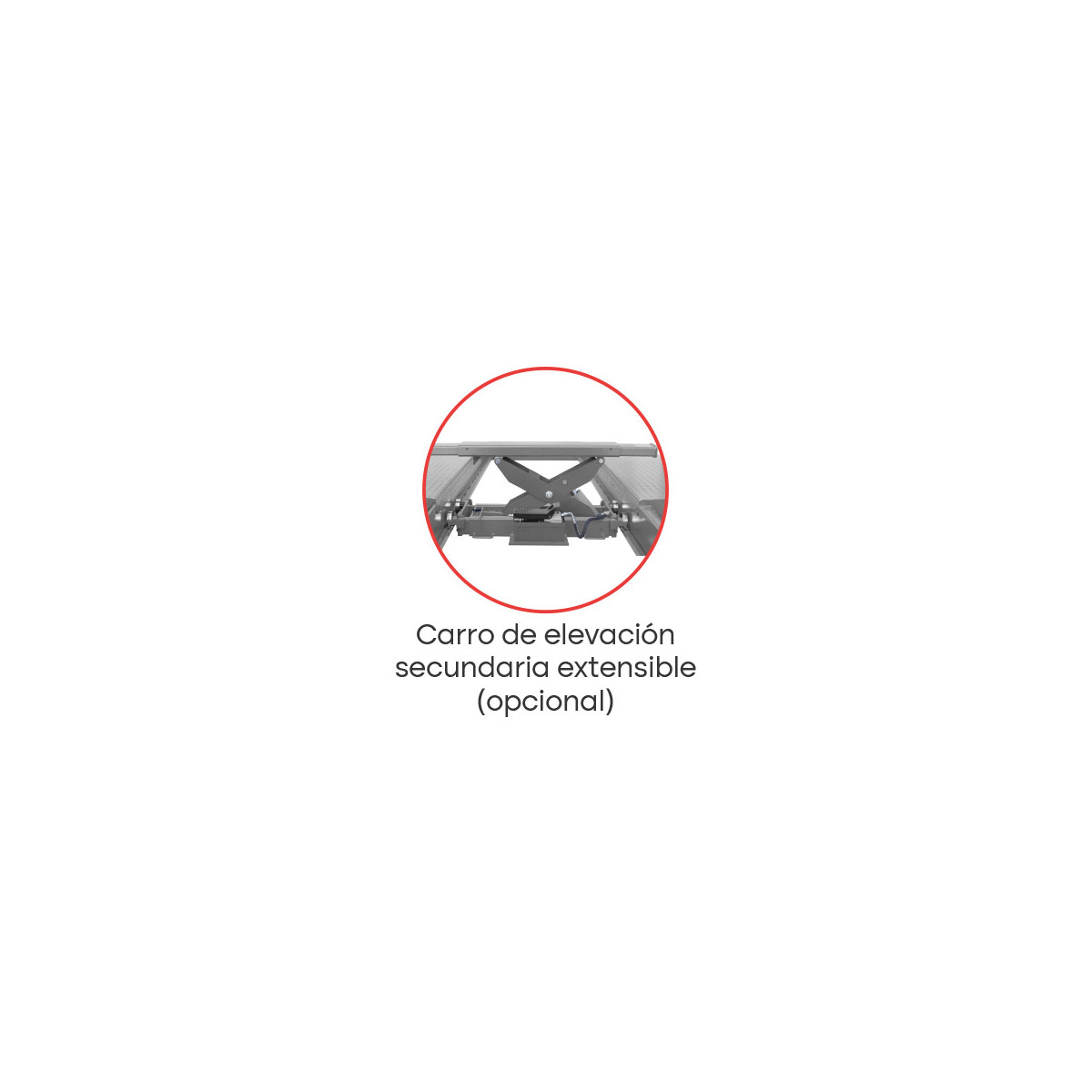

It is designed for professional mechanical workshops that require a robust, safe and versatile solution for vehicle maintenance, repair, alignment and overhaul operations. Its electro-hydraulic system provides smooth and stable lifting, while the reinforced structure incorporates multiple safety systems, including mechanical locking, cable breakage protection, overload valve and emergency manual lowering. The platforms feature adjustable distance between front wheels and ball rollers at the rear to facilitate alignment work. In addition, it can be equipped with an optional 3-ton sliding secondary lift carriage, expanding its possibilities for use in specialized workshops.
Units per pack:
1
Unit Sale:
1 pc

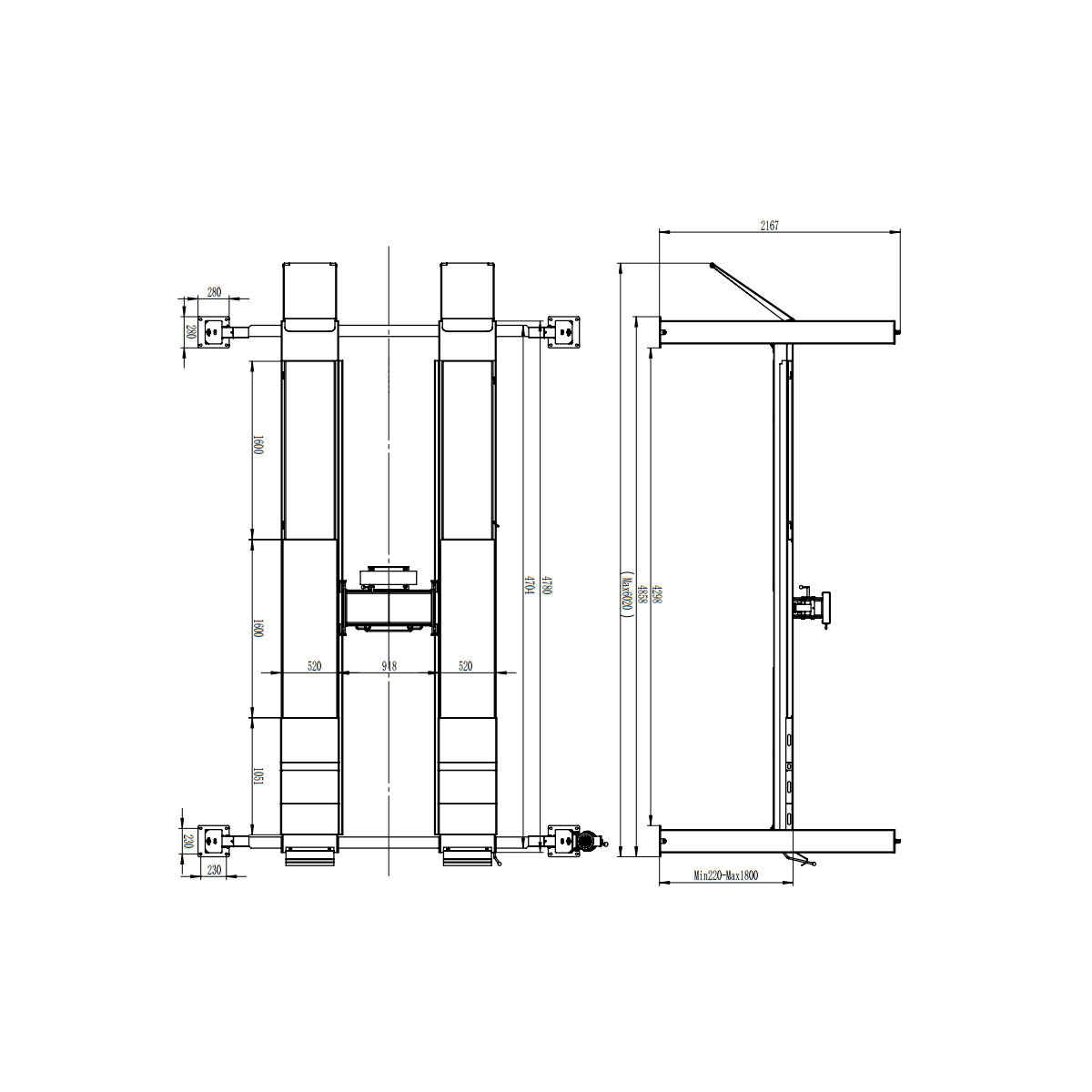

- Maximum load capacity: 4.5 T
- Maximum lifting height: 1800 mm
- Minimum height: 220 mm
- Total height: 2167 mm
- Total width: 3432 mm
- Total length (inc. ramps): 5800 mm
- Total length (excl. ramps): 4780 mm
- Width between columns: 3000 mm
- Motor power: 2,2 kW
- Power supply: 400V 50Hz 3PH
- Lifting time: ≤ 60 s
- Lowering time: ≤ 30 s
- Air pressure: 4-6 bar
- Compressor pressure: 21 MPa
- Noise level: < 76 dB
- Net weight: 1200 kg
- Packing dimensions: 4800 × 525 × 600 mm; 925 × 245 × 308 mm
- CE certification
EAN-13, GTIN, UCC8421779834382
- Maximum load capacity: 4.5 T
- Maximum lifting height: 1800 mm
- Minimum height: 220 mm
- Total height: 2167 mm
- Total width: 3432 mm
- Total length (inc. ramps): 5800 mm
- Total length (excl. ramps): 4780 mm
- Width between columns: 3000 mm
- Motor power: 2,2 kW
- Power supply: 400V 50Hz 3PH
- Lifting time: ≤ 60 s
- Lowering time: ≤ 30 s
- Air pressure: 4-6 bar
- Compressor pressure: 21 MPa
- Noise level: < 76 dB
- Net weight: 1200 kg
- Packing dimensions: 4800 × 525 × 600 mm; 925 × 245 × 308 mm
- CE certification
