Reference1702.2350004

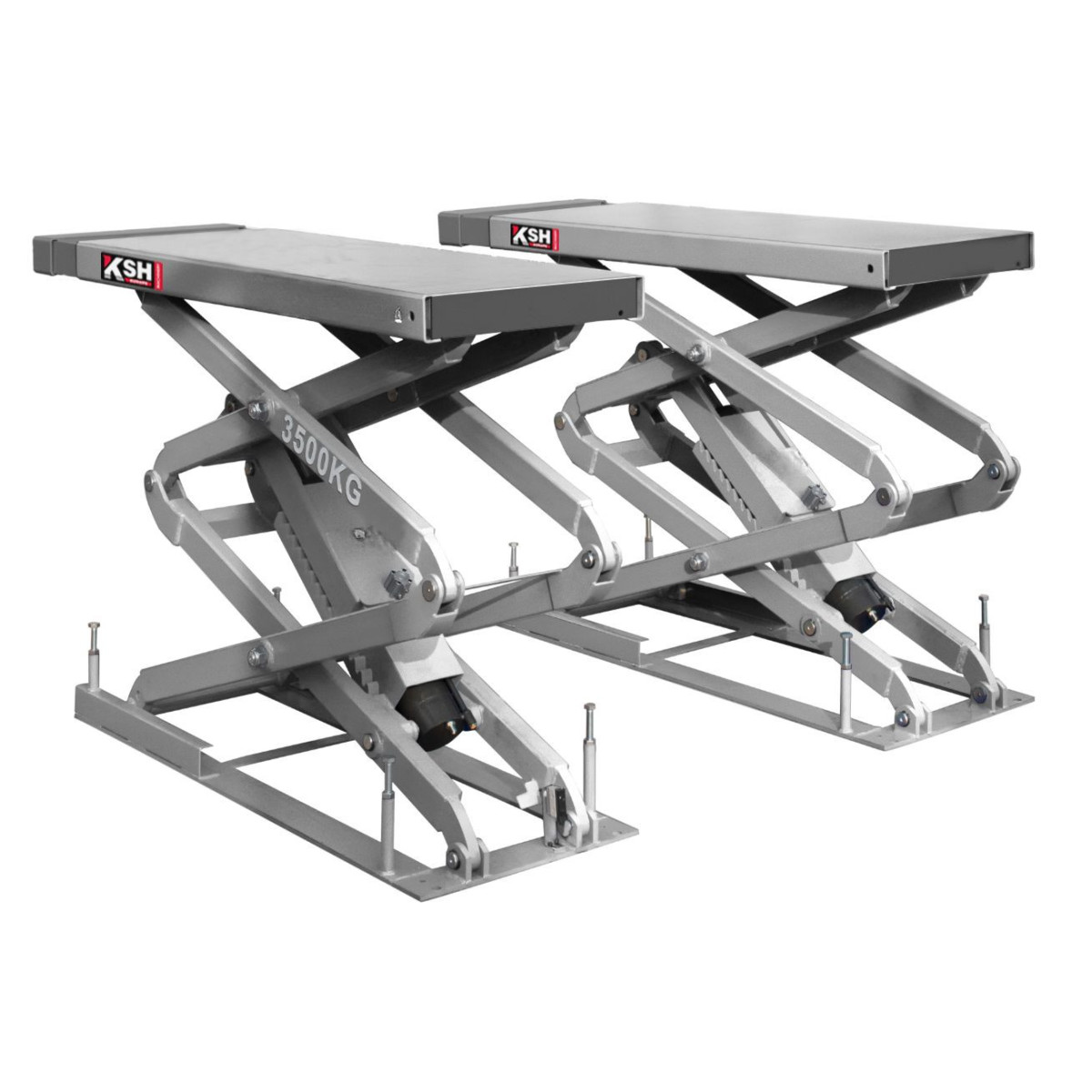

Built-in Scissor Lift 3,5T 400V

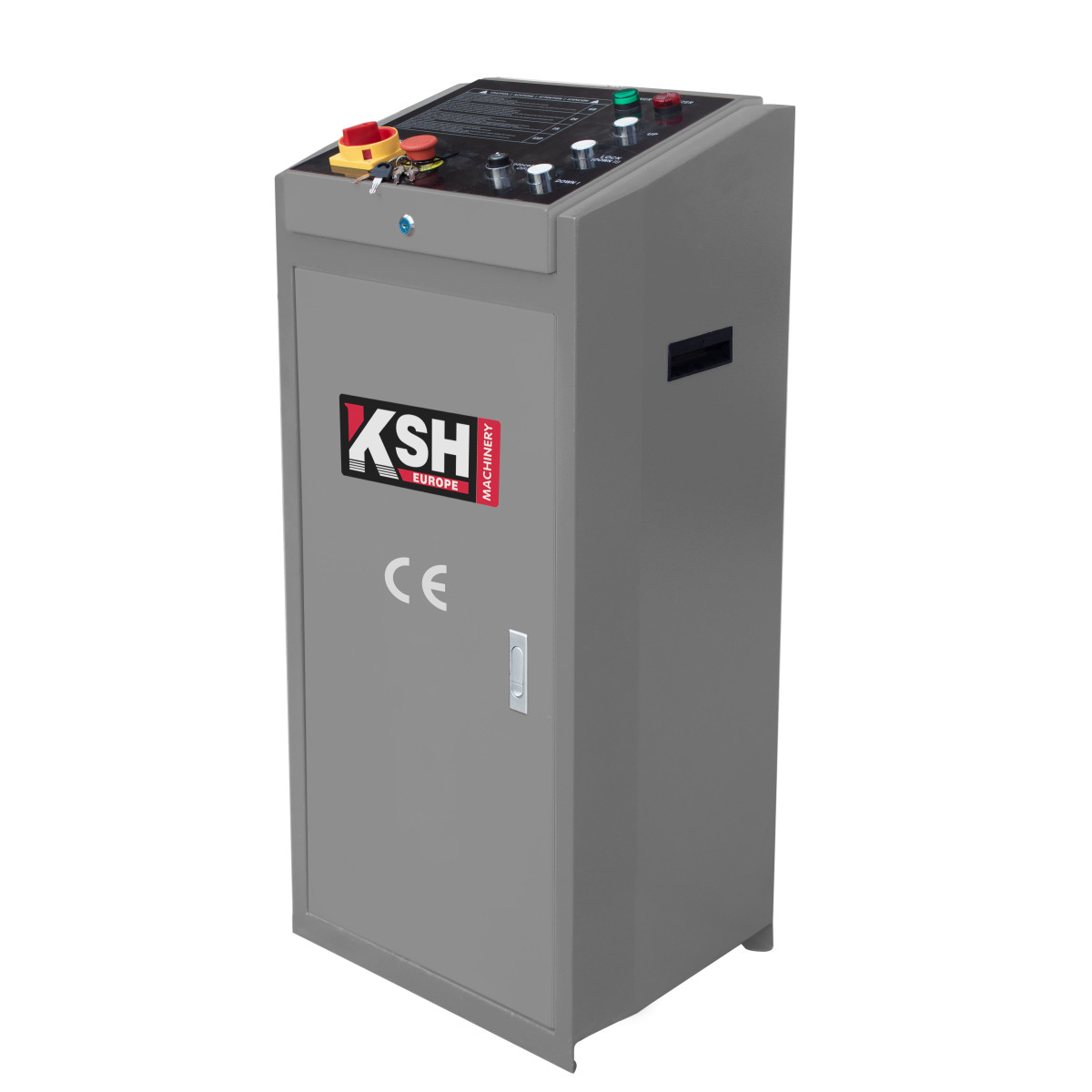

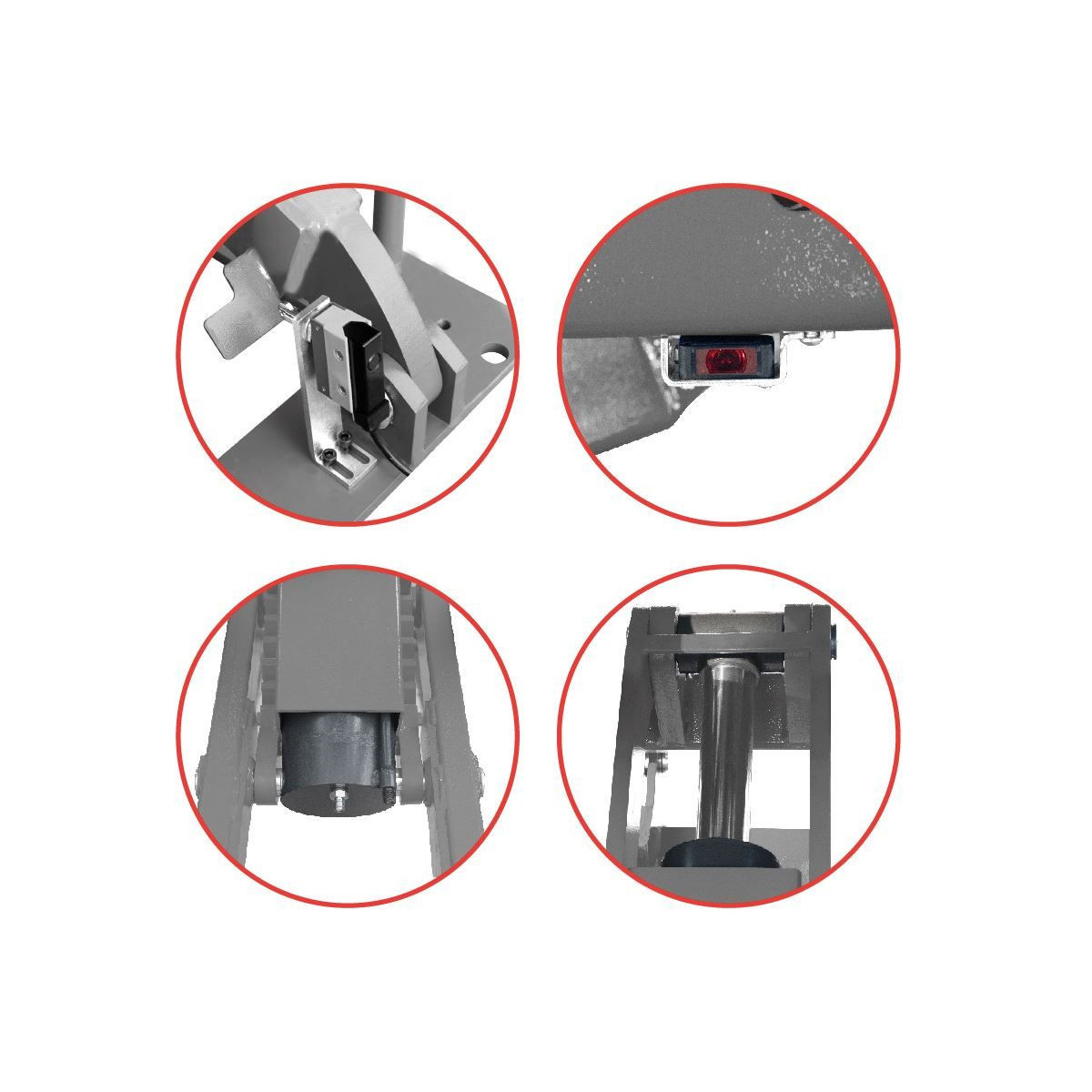

Designed for recessed installations, this 3.5 tonne scissor lift is the ideal solution for workshops that require maximum efficiency and free space in the work area. Its robust design, combined with a dual drive hydraulic system (main and auxiliary), ensures precise and safe lifting. It incorporates photocell levelling, extendable ramps and advanced safety systems such as hydraulic locking, grooved mechanical claws and anti-detonation valve. In addition, the control cabinet is equipped with an alarm that alerts during the lowering process. A professional tool that optimises productivity and ensures compliance with the highest CE-certified quality standards.
Unit Sale:
1 pc
Qty Ind Box:
1

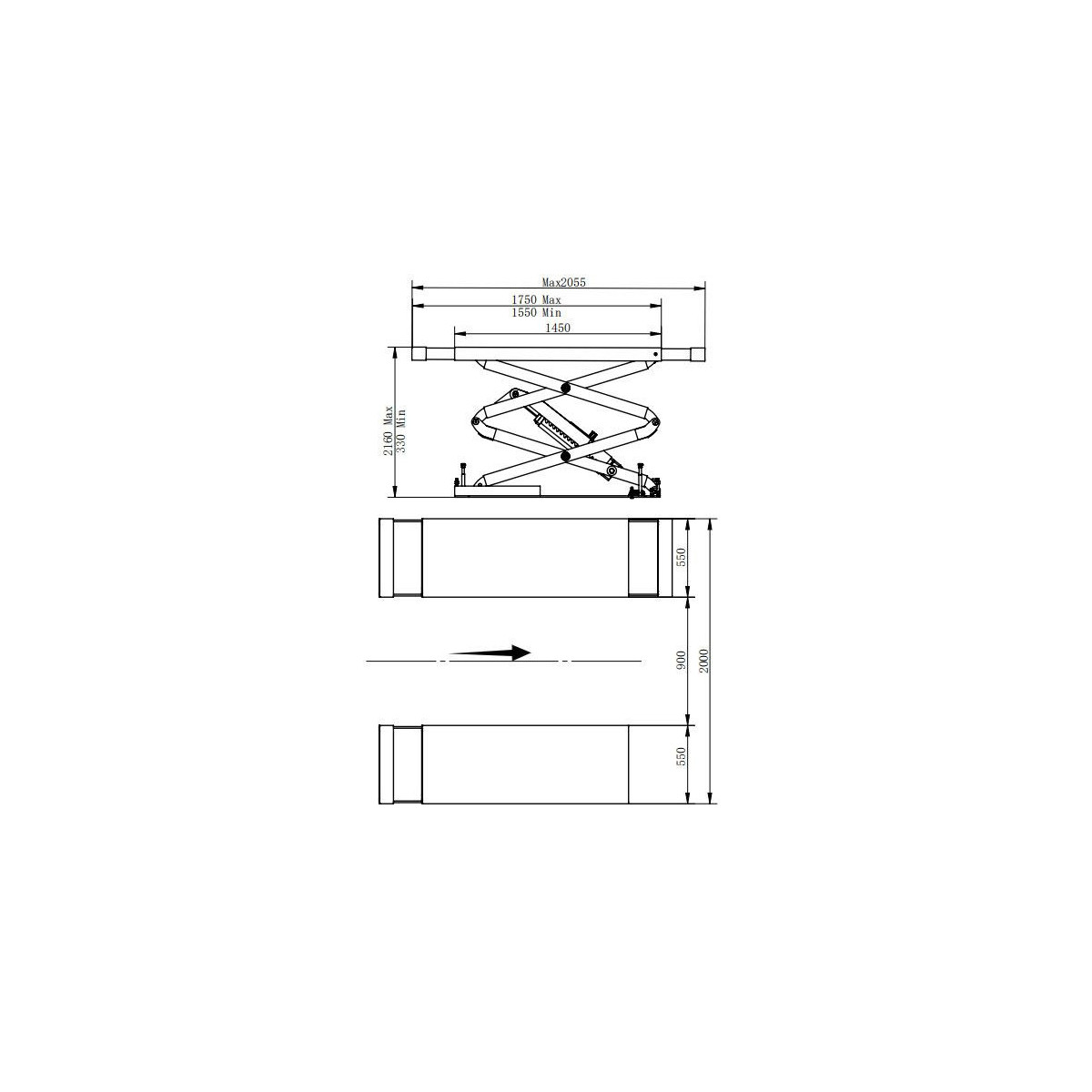

- Maximum load capacity: 3.5 T.
- Sound level: ≤ 75 dB.
- Overall width: 2000 mm.
- Overall length: 2055 mm.
- Maximum height (lift): 2160 mm.
- Minimum height: 330 mm.
- Ramp length: 1450-2055 mm.
- Ramp width: 550 mm.
- Motor power: 2,2 kW.
- Power supply: 400V 50Hz 3PH.
- Lifting time: ≤ 60 s.
- Lowering time: ≤ 30 s.
- Air pressure: 22 Mpa.
- Steel thickness (ramps): 5 mm.
- Net weight: 700 kg.
- Package dimensions: 1700 x 605 x 850 mm, 425 x 485 x 1140 mm
EAN13: 8421779827384
