Reference1702.1120005

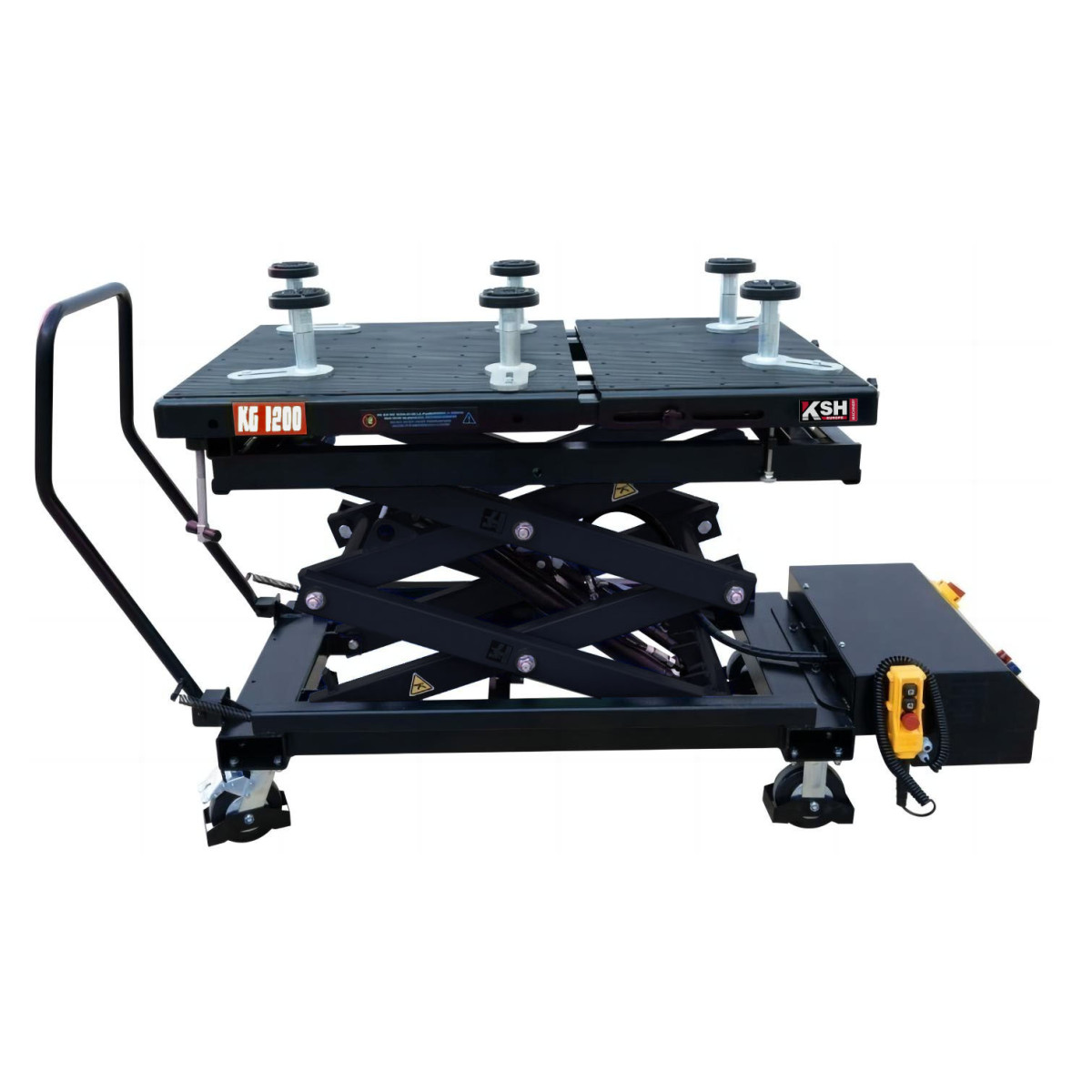

Hydraulic Table for Electric Car Batteries

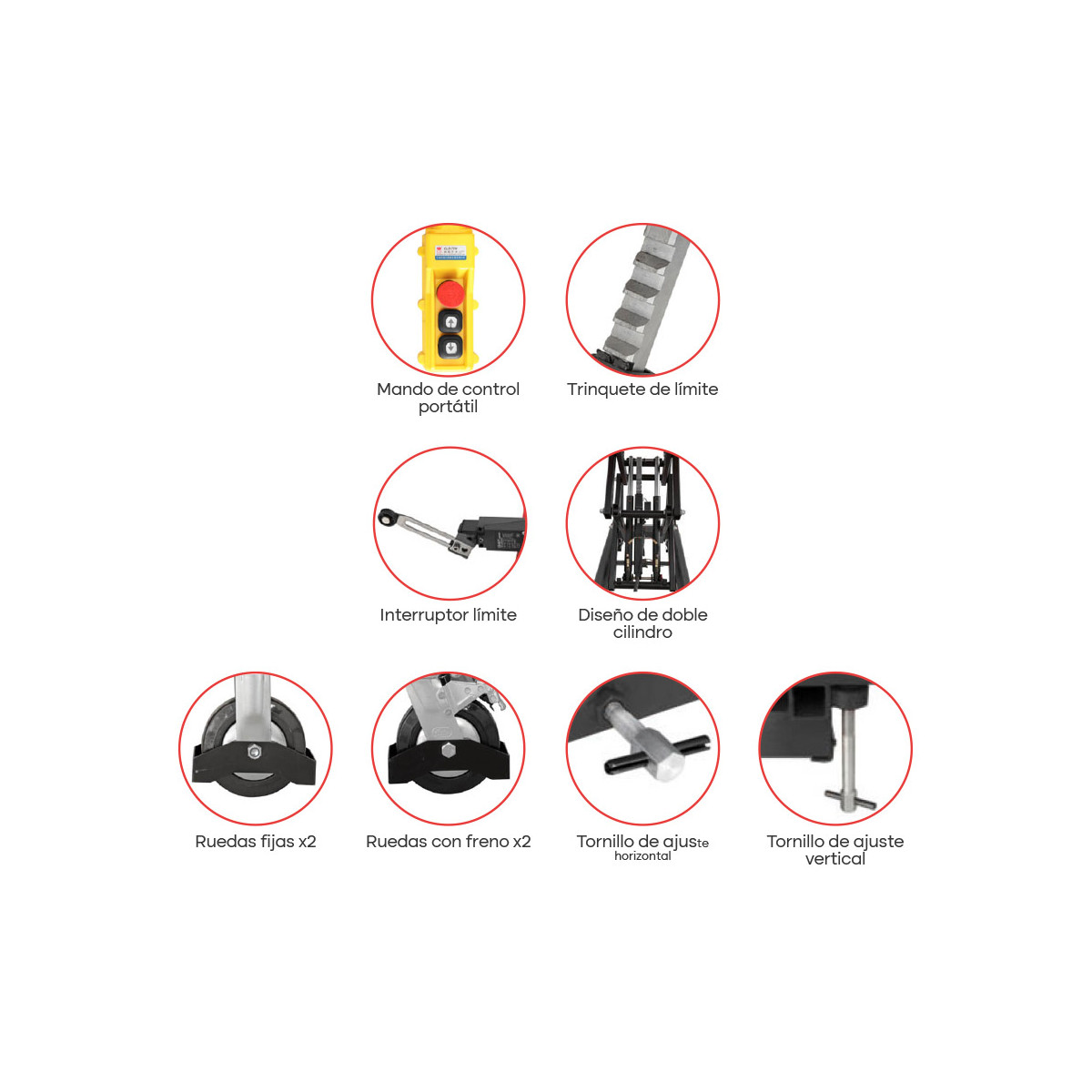

The Hydraulic Table for Electric Car Batteries is designed to facilitate the safe disassembly and assembly of batteries in electric vehicles, guaranteeing maximum precision and protection for operators. Equipped with explosion-proof valves, automatic release and a precise adjustment system, it allows the battery hole to be precisely aligned with the chassis hole. Insulated rubber pads, adjustable in three heights, provide a firm and adaptable grip. Its robust design includes lateral displacement and dual-axis oscillation, making it easy to work in any vehicle configuration. CE certified, this tool is essential for any workshop specialising in electromobility.

Read moreShow less
Qty Ind Box:
1
  • Maximum load capacity: 1,200 kg
  • Maximum lift height: 1.840 mm
  • Minimum height: 650 mm
  • Platform length: 1.290 mm + 110 mm (extension)
  • Platform width: 770 mm

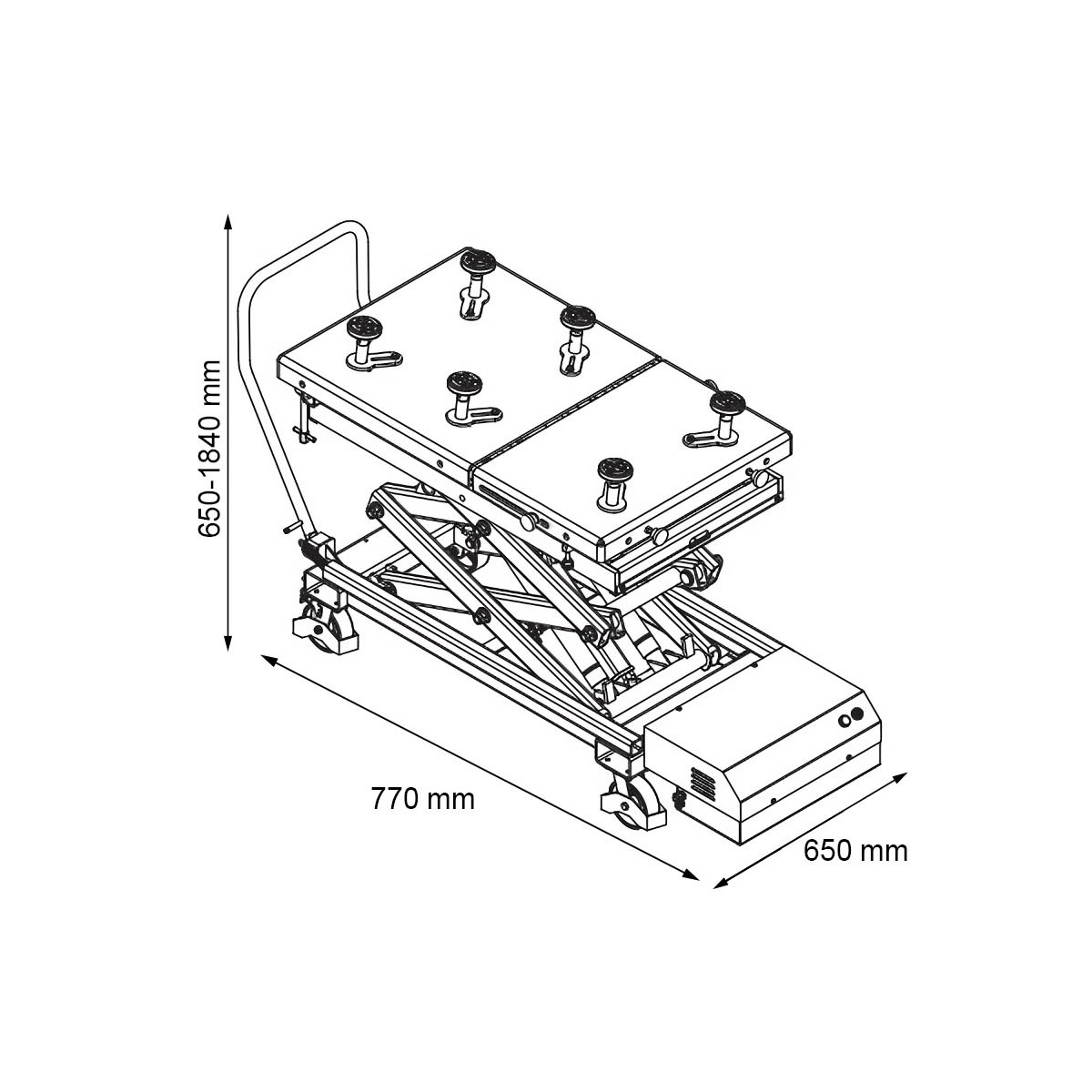

  • Product dimensions: 1.840 x 770 x 650 mm
  • Lateral displacement in 4 directions: ±50 mm
  • Angle of oscillation X-axis: ±5°
  • Y-axis oscillation angle: ±5° Y-axis oscillation angle: ±5° Y-axis oscillation angle: ±5

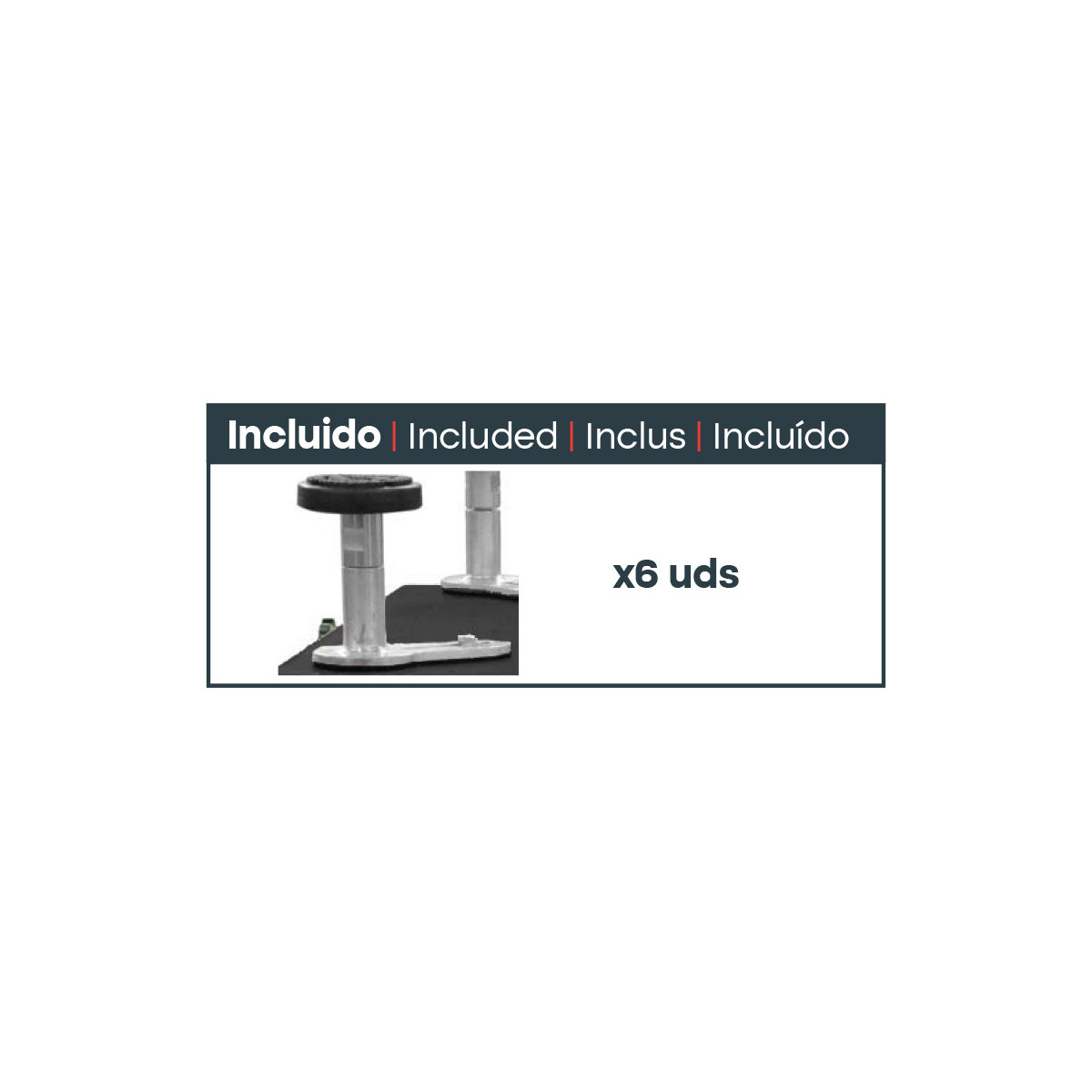

  • Adjustable height of rubber blocks: 160 - 210 mm
  • Lifting time: 60 s
  • Lowering time: 40 s
  • Power supply: 380V 3PH
  • Net weight: 418 kg
  • Package dimension: 1.810 x 870 x 780 mm
  • Certification: CE

EAN13: 8421779830483
  • Maximum load capacity: 1,200 kg
  • Maximum lift height: 1.840 mm
  • Minimum height: 650 mm
  • Platform length: 1.290 mm + 110 mm (extension)
  • Platform width: 770 mm
  • Product dimensions: 1.840 x 770 x 650 mm
  • Lateral displacement in 4 directions: ±50 mm
  • Angle of oscillation X-axis: ±5°
  • Y-axis oscillation angle: ±5° Y-axis oscillation angle: ±5° Y-axis oscillation angle: ±5
  • Adjustable height of rubber blocks: 160 - 210 mm
  • Lifting time: 60 s
  • Lowering time: 40 s
  • Power supply: 380V 3PH
  • Net weight: 418 kg
  • Package dimension: 1.810 x 870 x 780 mm
  • Certification: CE
