Reference1709.2270002

Car Parking Column Double 2,7T 400V

Space optimisation and safety for professional workshops and car parks

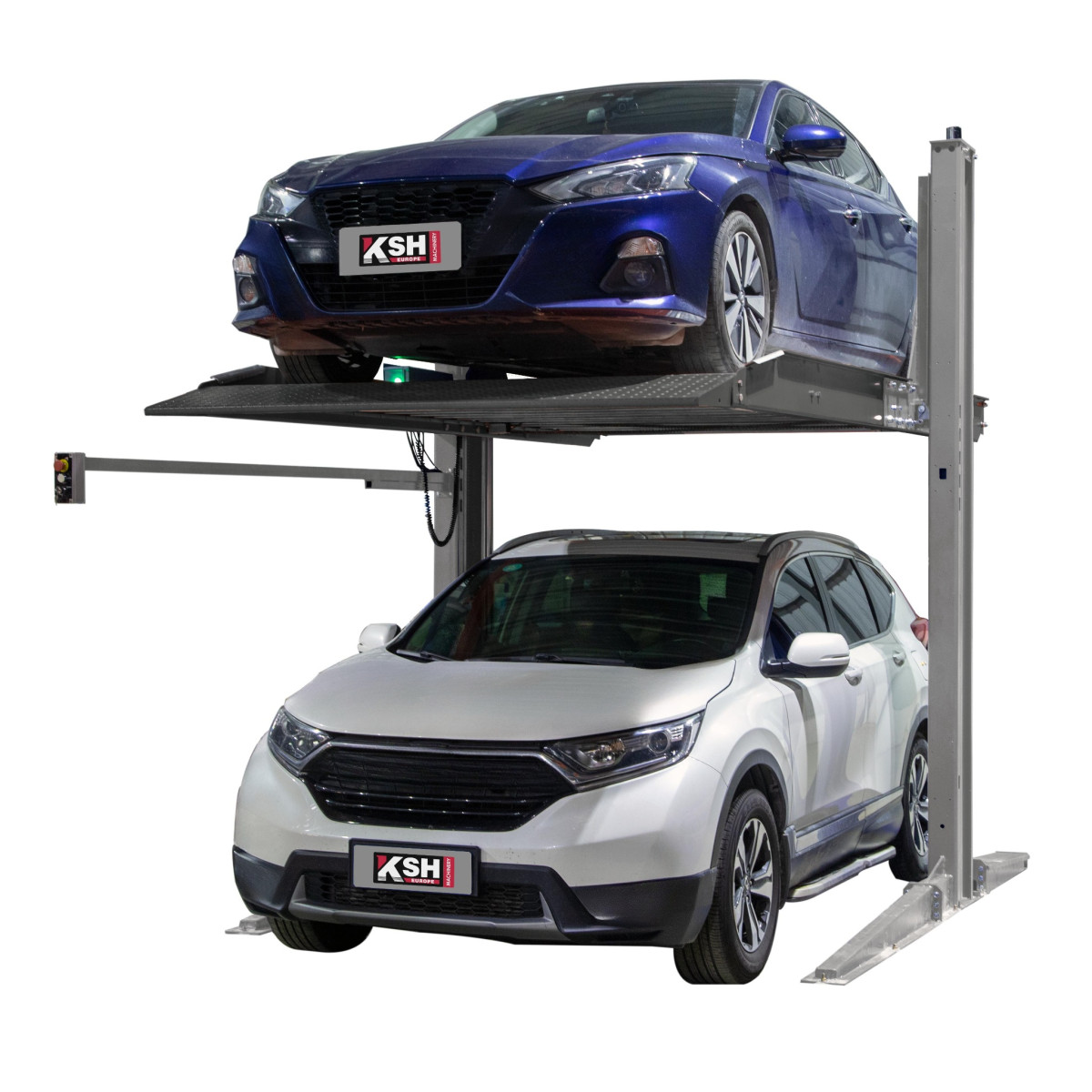

The Car Parking Lift Column is a hydraulic solution designed to park 2 cars safely and efficiently, optimising the available space both indoors and outdoors. Equipped with an anti-fall safety locking position, it offers safe operation throughout the entire lifting process. Its 3 kW motor ensures smooth operation with optimised lifting and lowering times. CE-certified, it meets the highest European quality and safety standards. In addition, it allows connection between several units, making it easily adaptable to large capacity projects.

Read moreShow less
Qty Ind Box:
1
  • Type: Hydraulic parking column for 2 cars
  • Maximum load capacity: 2,7 T
  • Maximum lifting height: 2100 mm

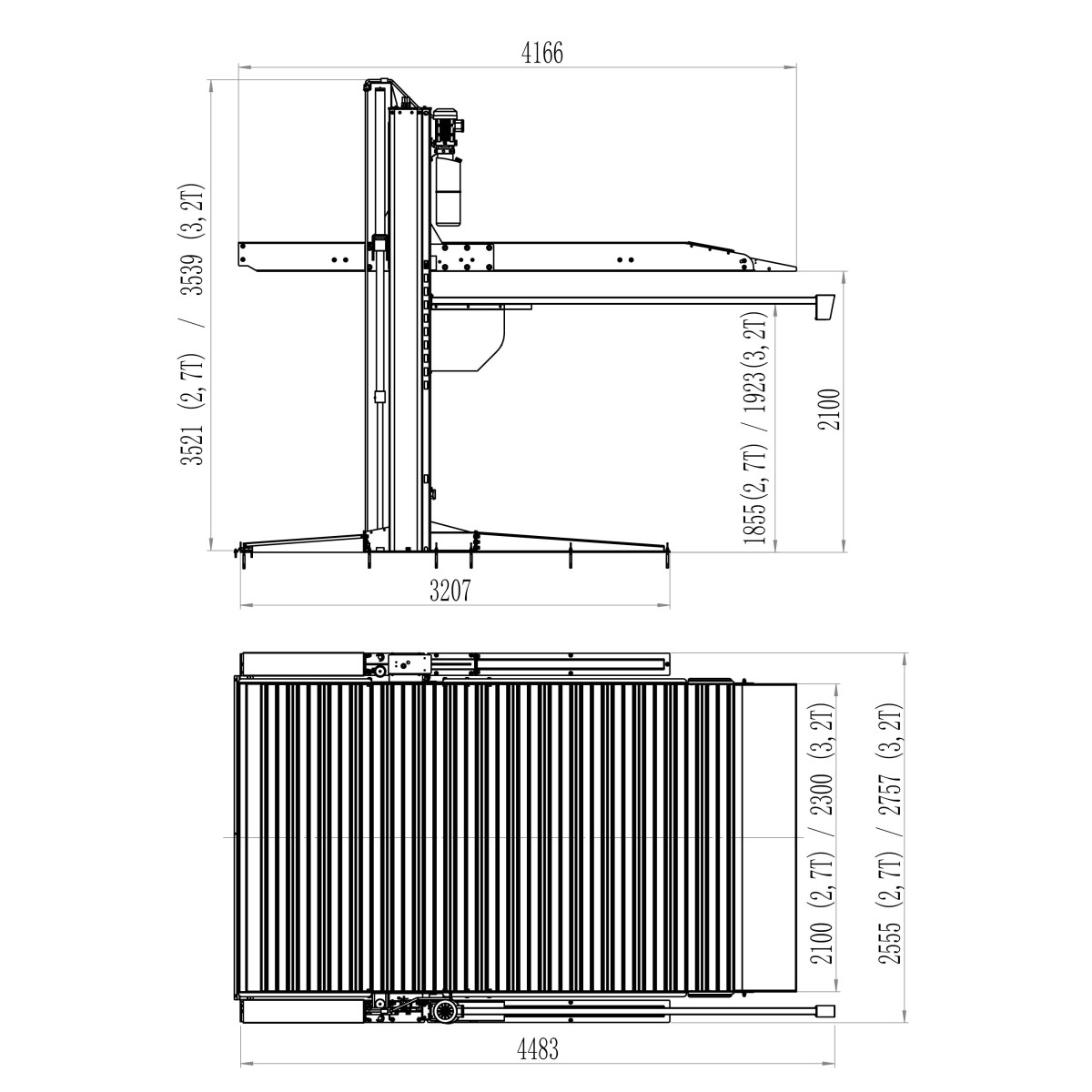

  • Column dimensions: 2555*4483*3521 mm
  • Platform dimensions: 4166*2100 mm
  • Engine power: 3 kW
  • Lifting / lowering time: 100 s / 40 s
  • Net weight: 1142 kg
  • Electrical power supply options: 400V 50Hz 3PH

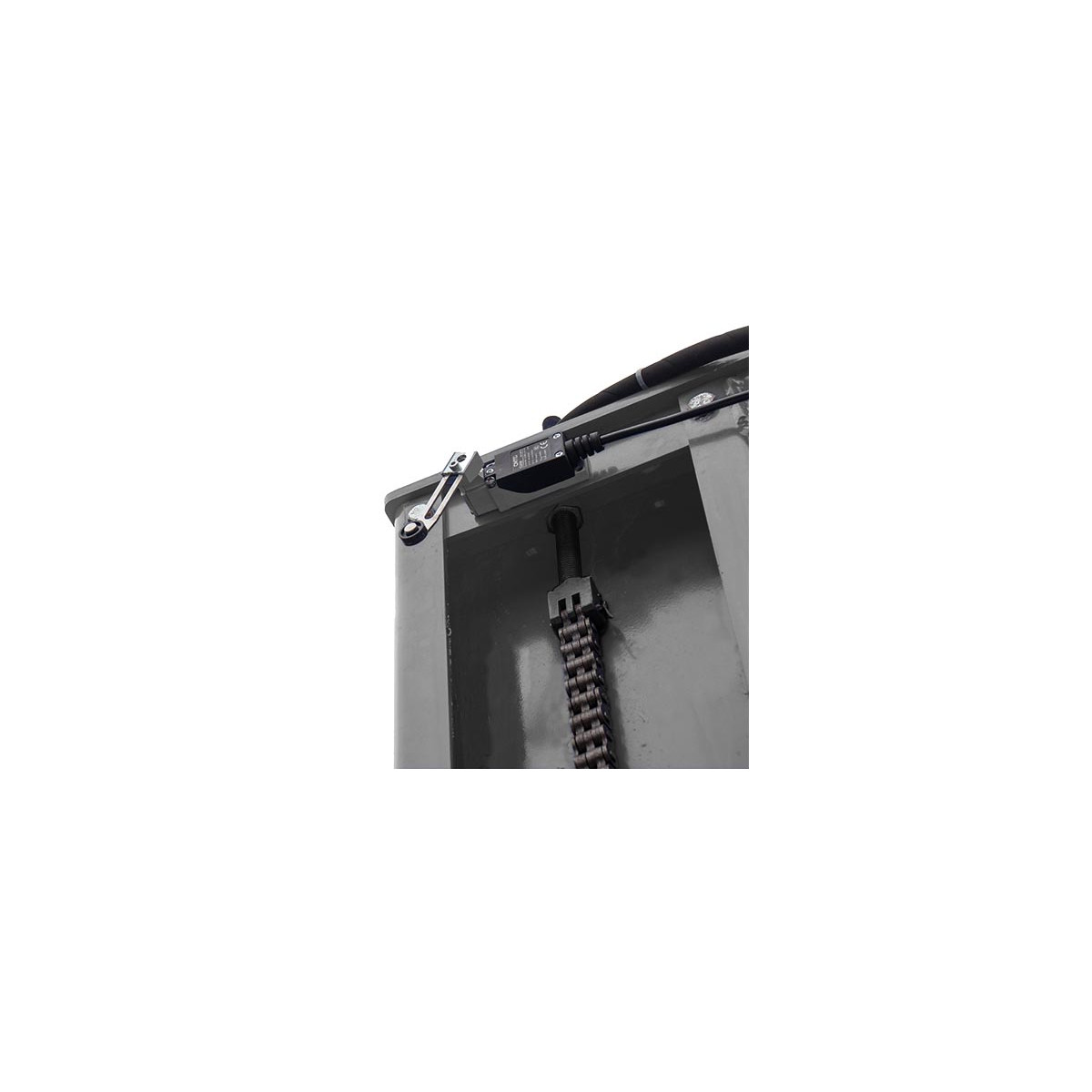

  • Anti-fall safety locking position: Yes
  • Installation: Indoor and outdoor
  • Certification: CE
  • Package dimensions: 3855 x 996 x 585 mm; 2100 x 800 x 320 x 320 mm; 925 x 245 x 308 mm

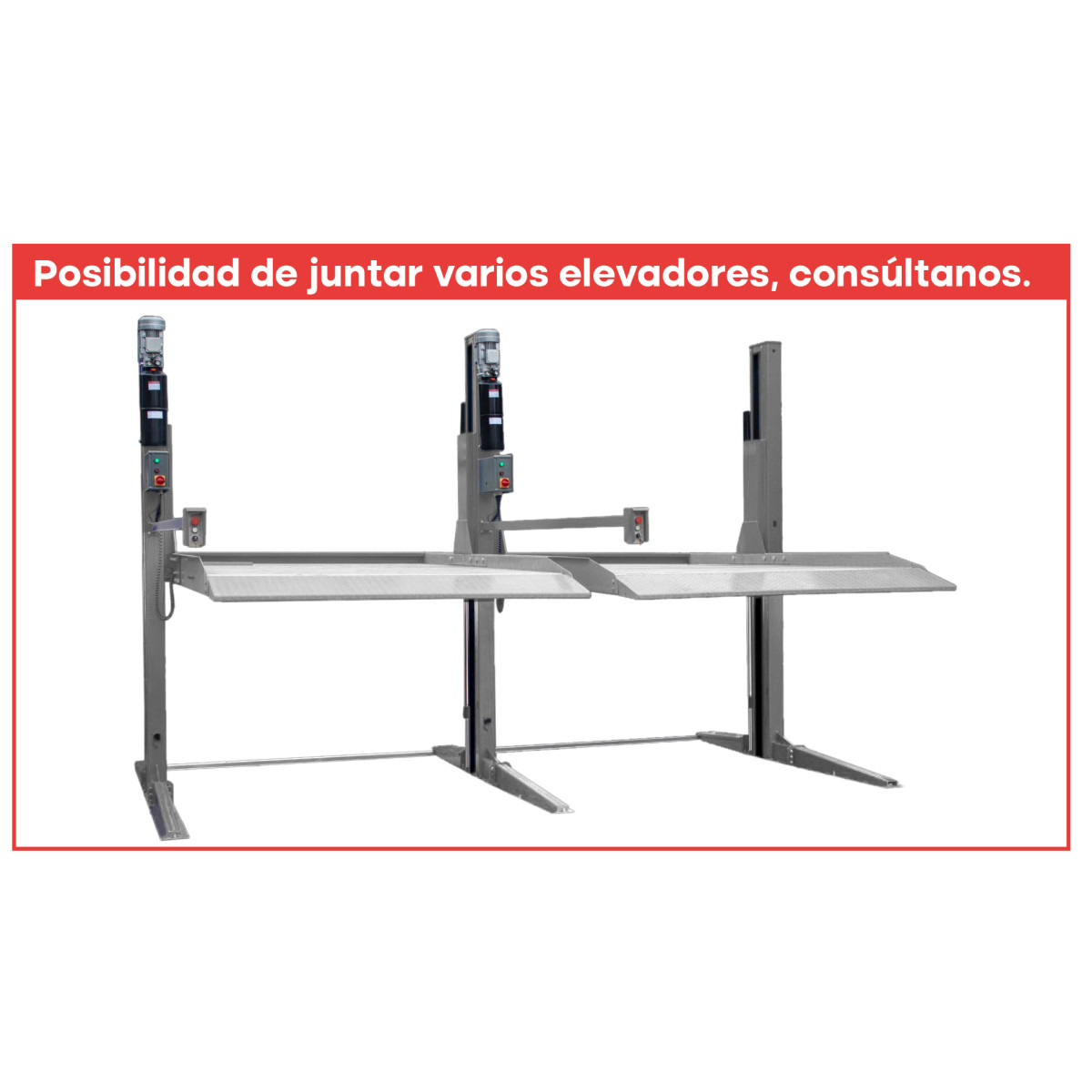

  • Possibility of interconnection of multiple columns

EAN13: 8421779830278
  • Type: Hydraulic parking column for 2 cars
  • Maximum load capacity: 2,7 T
  • Maximum lifting height: 2100 mm
  • Column dimensions: 2555*4483*3521 mm
  • Platform dimensions: 4166*2100 mm
  • Engine power: 3 kW
  • Lifting / lowering time: 100 s / 40 s
  • Net weight: 1142 kg
  • Electrical power supply options: 400V 50Hz 3PH
  • Anti-fall safety locking position: Yes
  • Installation: Indoor and outdoor
  • Certification: CE
  • Package dimensions: 3855 x 996 x 585 mm; 2100 x 800 x 320 x 320 mm; 925 x 245 x 308 mm
  • Possibility of interconnection of multiple columns
