Reference1601.0016003

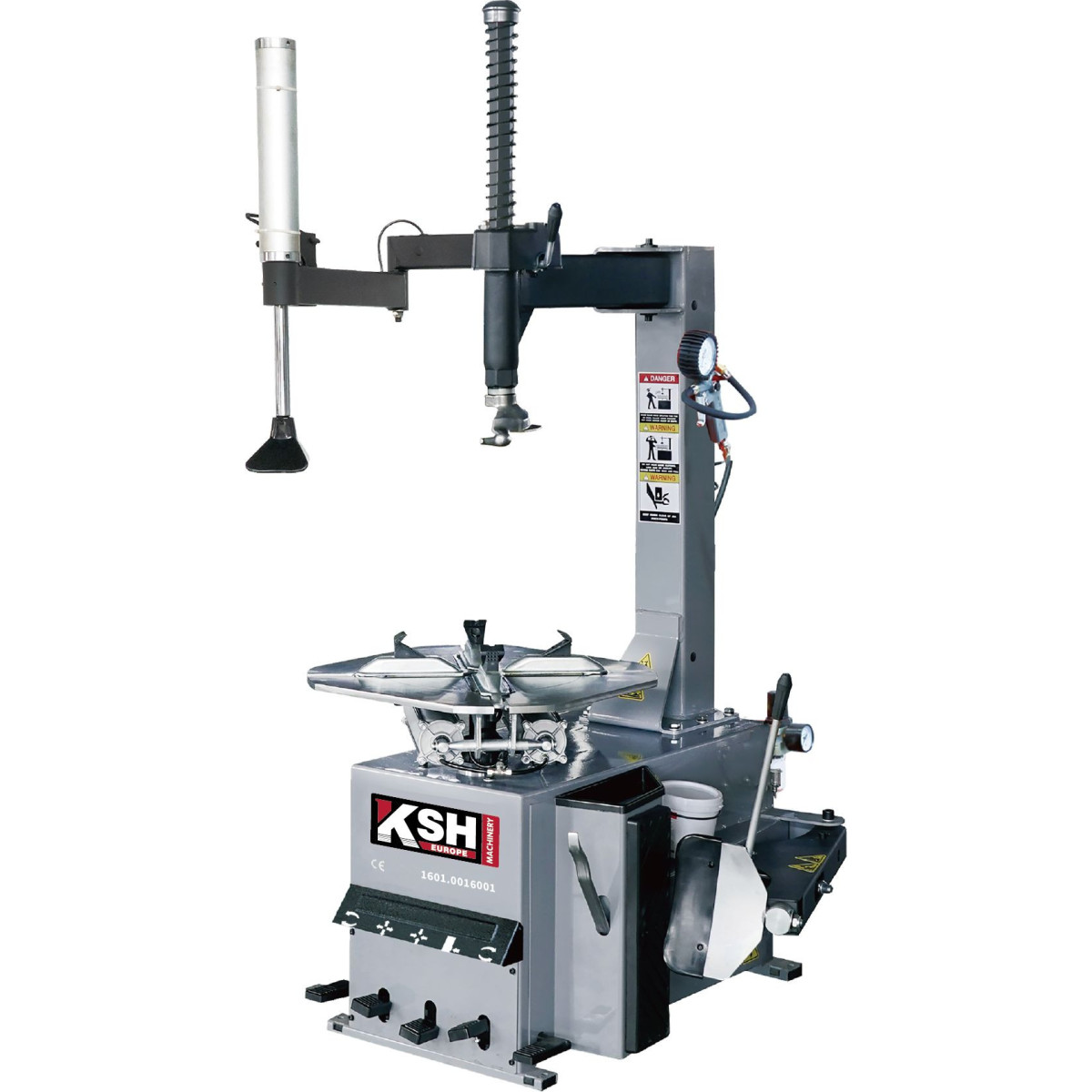

Semi-automatic tyre changer with support arm 230V

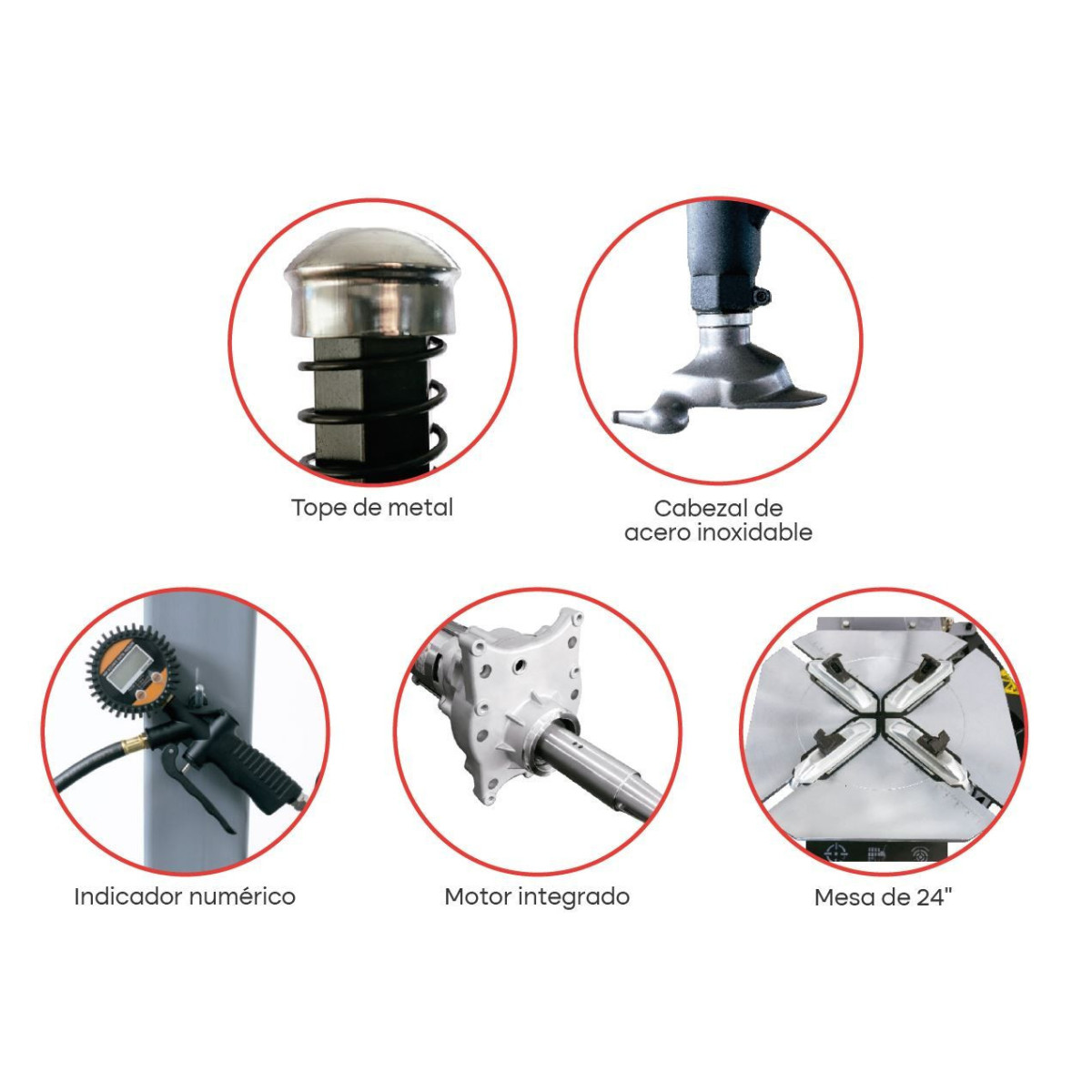

Designed for workshops that require efficiency and versatility, this semi-automatic tyre changer incorporates a support arm that facilitates the handling of large tyres, improving the ergonomics of the work. Its self-centring system and the clamping with step function allow precise and safe handling of the tyre, minimising risks and operating times. This machine is certified with the CE mark, which guarantees compliance with European safety and quality standards. Its compact and robust structure is complemented by an efficient integrated motor, ideal for continuous use in professional environments. Compatible with rims of various dimensions.

Read moreShow less
Unit Sale:
1 pc
Qty Ind Box:
1
  • Ø rim (outside): 10"-21"
  • Ø rim (inside): 12"-24
  • Max. tyre Ø: 1070 mm
  • Max. tyre width: 14
  • Rotational speed: 7 Rpm
  • Working pressure: 8-10 bar
  • Power supply: 230V 50Hz 1PH
  • Power (integrated motor): 0,37 kW

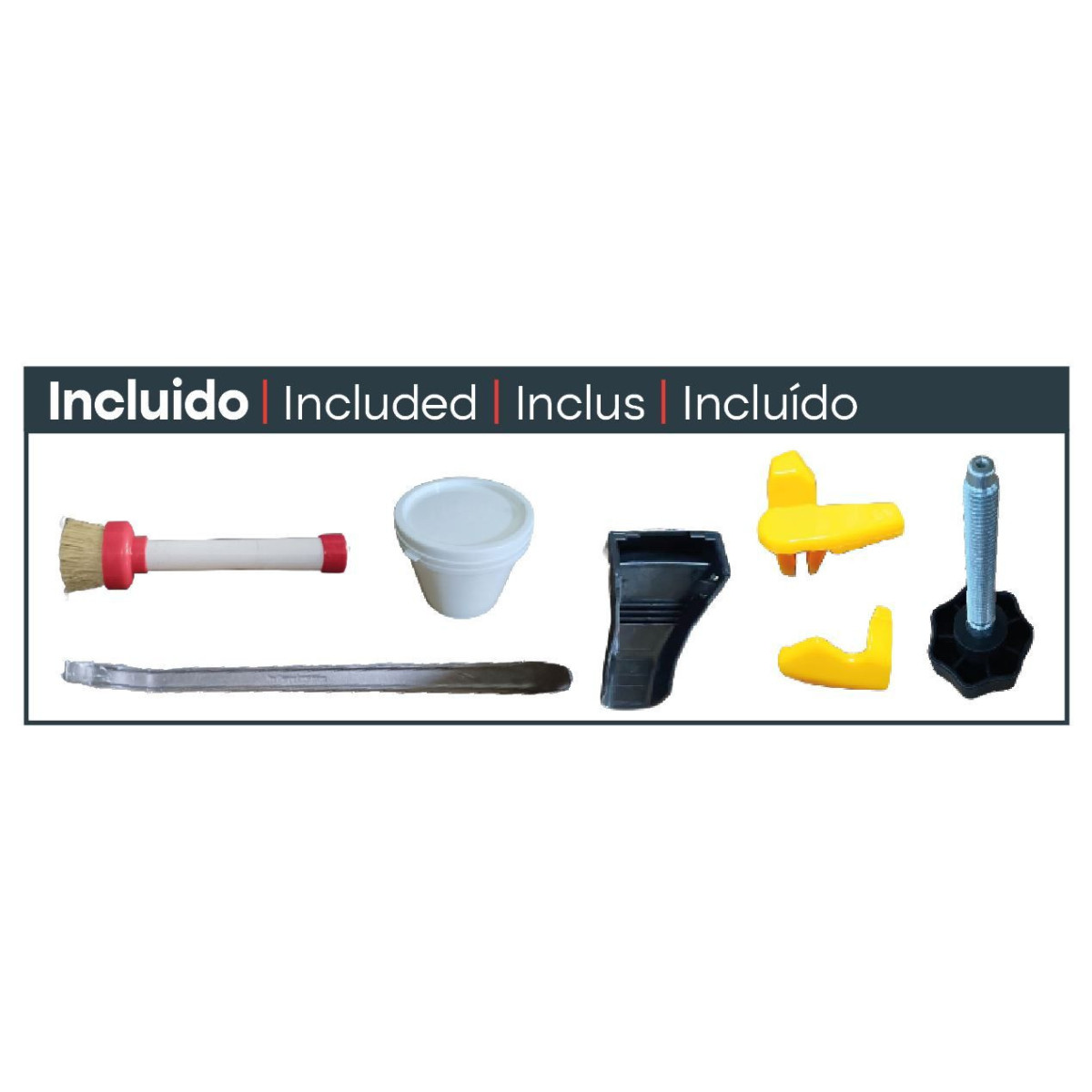

  • Support arm: Included
  • Bead breaker force: 2500 kg
  • Noise: < 75 dB
  • No. of pedals: 5

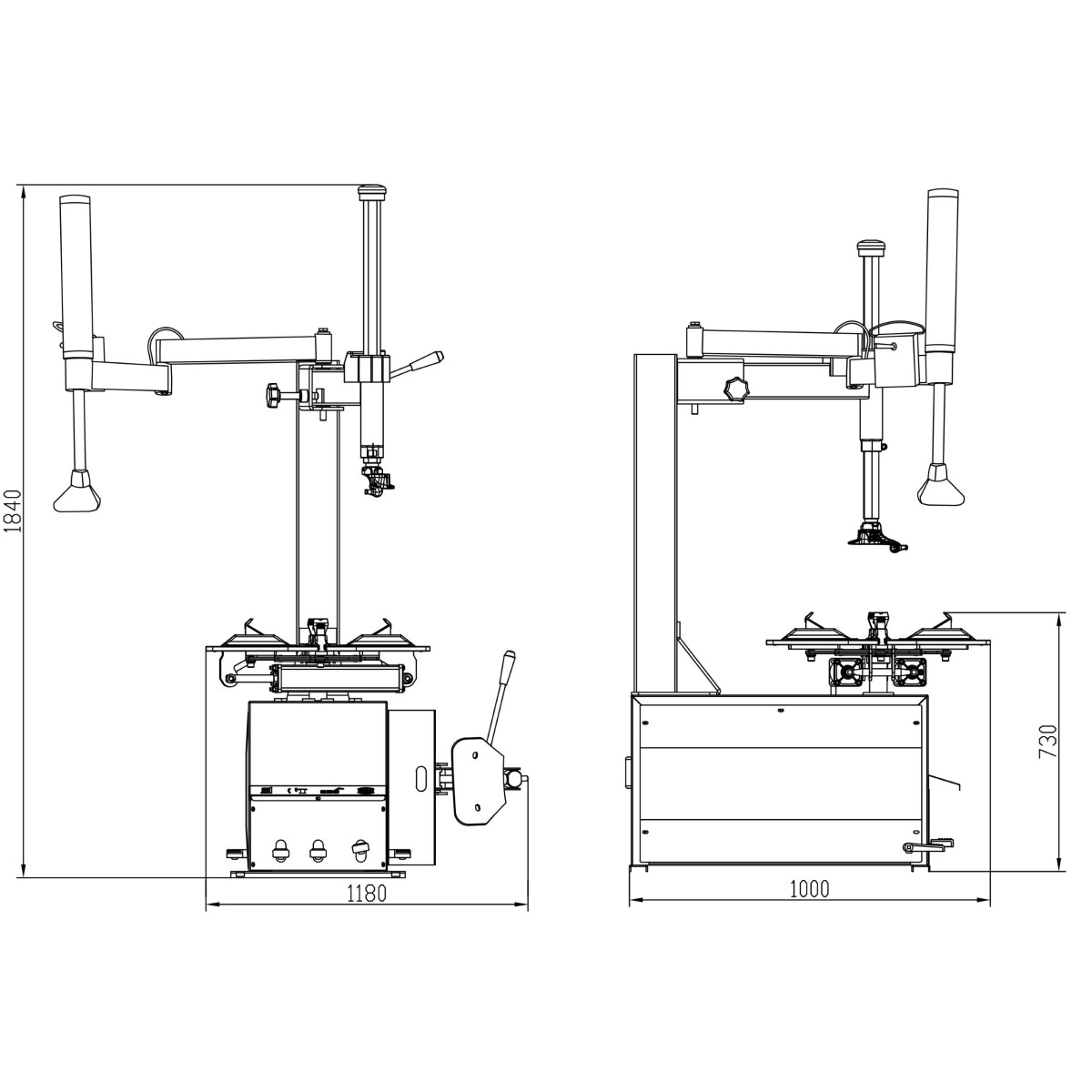

  • Machine dimensions: 1180 x 1000 x 1840 mm
  • Net weight: 213 kg
  • Package dimensions: 985 x 770 x 880 mm
EAN13: 8421779829180
