Reference1704.0400002

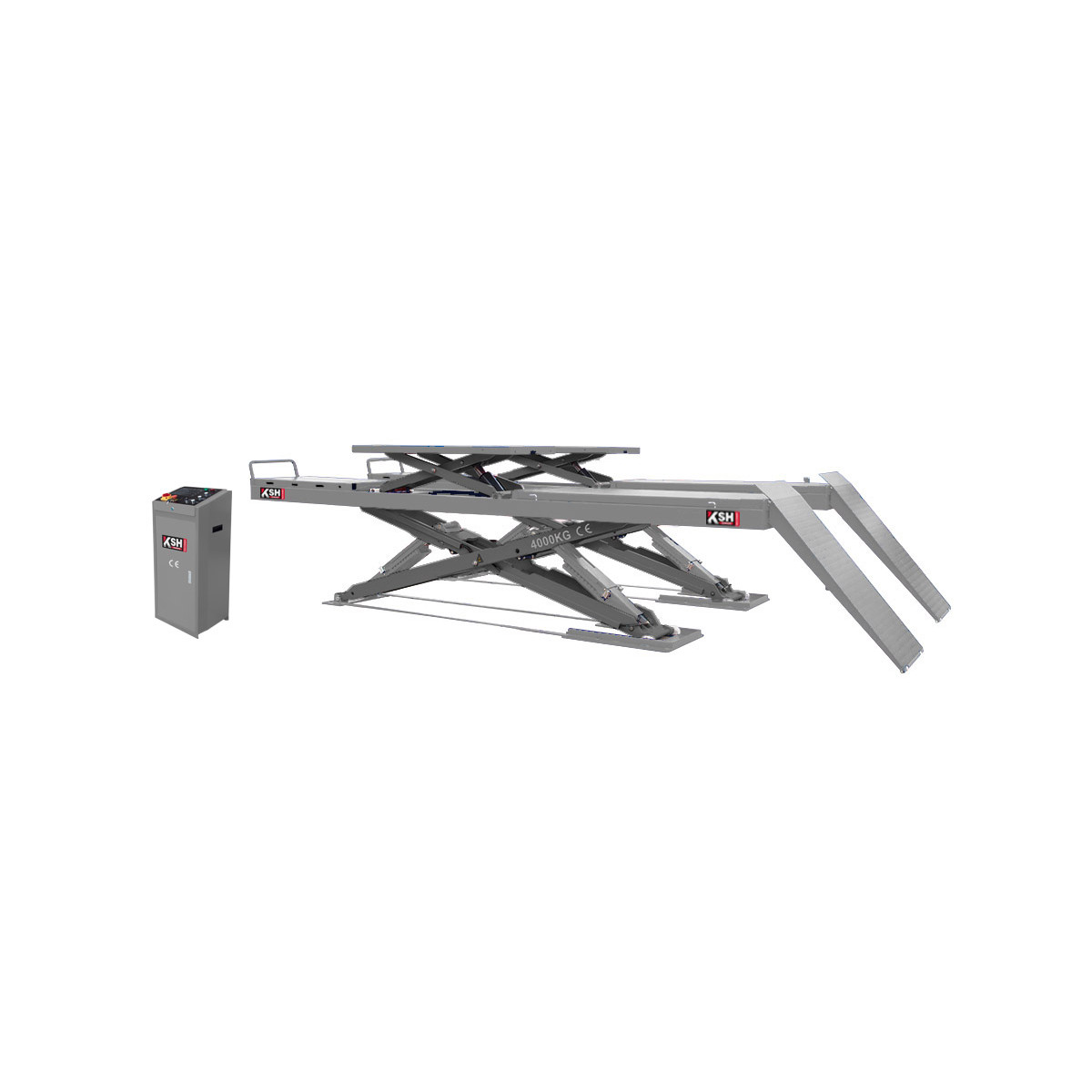

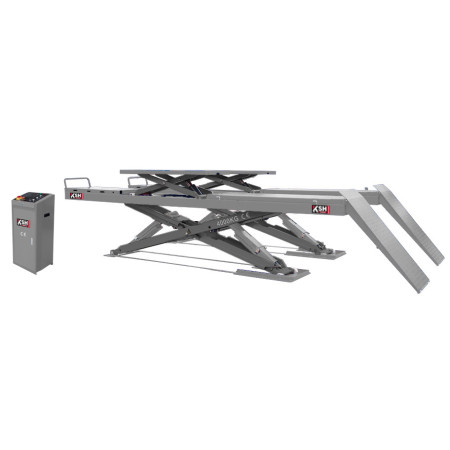

Double Scissor Lift (surface) for alignment 4T

Designed for precise and safe alignment operations, this double lift scissor lift combines state-of-the-art technology and structural robustness. It incorporates a system of synchronised cylinders with hose rupture valves that ensures stable, risk-free lifting. The mechanical lock with pneumatic release guarantees maximum safety during use, facilitating reliable and efficient operation. The length and height adjustable structure can be adapted to different types of vehicles, making this equipment an essential tool for any professional workshop. CE certified, this lift ensures quality, reliability and compliance with European standards.

Read moreShow less
Qty Ind Box:
1
  • Load capacity main platform: 4.000 kg
  • Load capacity secondary lift: 4.000 kg
  • Lifting height (min-max): 220 - 1.850 mm
  • Lifting height of the secondary lift: 450 mm
  • Adjustable length of main platform: 4.500 - 5.400 mm
  • Adjustable length of secondary lift: 1.500 - 1.800 mm
  • Motor power: 2.2 kW
  • Power supply: 400V 50Hz 3PH
  • Lifting time: 60 s
  • Lowering time: 30 - 40 s
  • Air pressure required: 6 - 8 kg/cm²
  • Steel thickness (ramps): 6 mm
  • Net weight: 2.260 kg
  • Dimensions of package: 4.600 x 700 x 845 mm

EAN13: 8421779830254
  • Load capacity main platform: 4.000 kg
  • Load capacity secondary lift: 4.000 kg
  • Lifting height (min-max): 220 - 1.850 mm
  • Lifting height of the secondary lift: 450 mm
  • Adjustable length of main platform: 4.500 - 5.400 mm
  • Adjustable length of secondary lift: 1.500 - 1.800 mm
  • Motor power: 2.2 kW
  • Power supply: 400V 50Hz 3PH
  • Lifting time: 60 s
  • Lowering time: 30 - 40 s
  • Air pressure required: 6 - 8 kg/cm²
  • Steel thickness (ramps): 6 mm
  • Net weight: 2.260 kg
  • Dimensions of package: 4.600 x 700 x 845 mm
